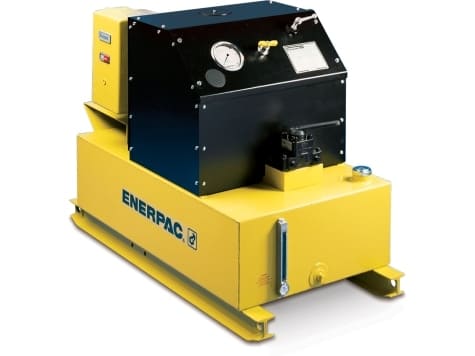

The Enerpac PER8418 is the 230V three-phase 8000-series pump with a VE43 solenoid valve for double-acting cylinders. The listed reservoir is 18 gallons, and the valve uses a four-way, three-position configuration.
The solenoid-operated arrangement is the main control distinction from PEM8418. Confirm the required electrical supply, valve controls and hydraulic return path as one installation.
Specifications
| Power Source | Electric |
|---|---|
| Pump Series | 8000 Series |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 2.0 gal/min @ 10,000 psi |
| Motor Power | 12.5 hp |
| Voltage | 230V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Reservoir Capacity | 4158 in³ |
| Valve Model | VE43 |
| Valve Configuration | 4-Way, 3-Position |
| Valve Operation | Solenoid |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Double-Acting |
