Hydraulic Punches

Hydraulic hole punches make the hole shapes and sizes specified for the tool and its matched tooling. Browse punch assemblies and packages with different pump and die configurations.

Check the material and reach to the hole

Compare permitted material type and thickness, hole-size range and throat depth. Rated force alone does not establish punching capacity for every material or hole diameter.

Confirm whether the listing includes a pump, case and standard tooling. Choose additional tooling from hydraulic punch dies using the exact punch model and matched punch-and-die reference.

Match hole geometry to material thickness and tool access

A punch purchase needs the hole size and shape, material grade and thickness, plus the distance from the sheet edge to the hole center. The punch's throat and tooling arrangement determine whether the hole location is reachable. Force capacity alone cannot establish the permitted material or hole size.

Fabrication detail	What to compare with the tool data
Material and thickness	Published punching limits for that material
Hole diameter or shape	Correct punch and matching die combination
Edge-to-center distance	Throat depth and physical access
Part geometry	Clearance for the tool body, supports and slug path
Package	Tool-only, die set or complete powered set

Keep the punch and die identification together

For repeated bracket or plate work, record the hole specification alongside the approved tooling pair. That makes replacement orders more reliable than keeping only a loose punch dimension. Different tooling systems can have the same nominal hole size while using different mounting interfaces.

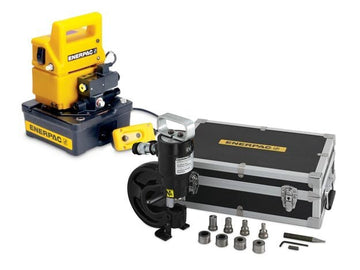

SP35S and SP35SP are useful package references for comparing the stated tool and power scope. Read their individual contents rather than assuming the additional package designation only changes the carrying case.

Hole location can rule out a tool before force does

Throat depth limits how far the tooling can reach from an accessible edge. If the required hole center lies beyond that working envelope, a larger force rating does not solve the access problem. Bent flanges and nearby features can also obstruct the body before the nominal throat depth is reached.

For a fabrication drawing, identify the hole center from the edge the tool will approach. Show the material profile and any surrounding returns or bends. This turns “punch a hole in the bracket” into a specification that can be checked against the tool's dimensions, material limit and tooling range.

Does every hydraulic punch include a standard die set?

Only where the listing says so. Confirm the actual shapes and sizes, then identify any additional punch dies required for the work.

Can I punch a harder plate by choosing a smaller hole?

Use the manufacturer's material and thickness limits. Do not extrapolate approval from a smaller opening or a higher nominal tool force.

What should a punch inquiry include?

Send material grade, thickness, hole shape and dimensions, hole location from the edge and the required production pattern.
