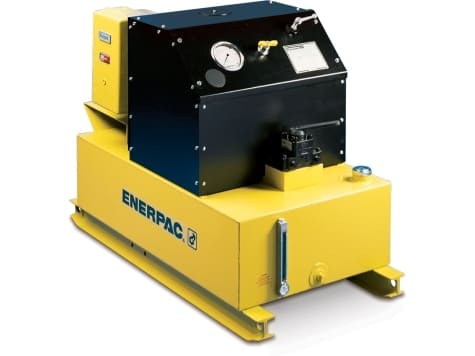

The Enerpac PEM8418 is a 230V three-phase 8000-series electric hydraulic pump with an 18 gallon listed reservoir. A VM4 manual four-way, three-position valve supplies the double-acting circuit.
The two-speed pump has a listed 2.0 gal/min delivery at 10,000 psi. Compare the valve control method, available electrical supply and cylinder oil demand when selecting this large-reservoir configuration.
Specifications
| Power Source | Electric |
|---|---|
| Pump Series | 8000 Series |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 2.0 gal/min @ 10,000 psi |
| Motor Power | 12.5 hp |
| Voltage | 230V |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Reservoir Capacity | 4158 in³ |
| Valve Model | VM-4 |
| Valve Configuration | 4-Way, 3-Position |
| Valve Operation | Manual |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Double-Acting |
