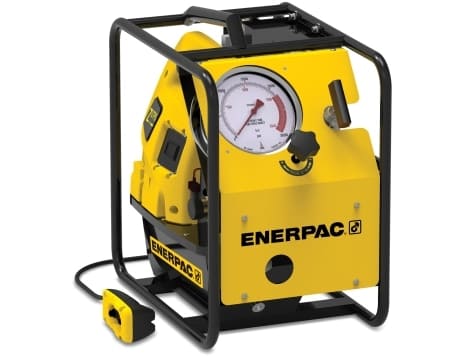

Pump, Electric Universal, 1500 Bar, 230V, Solenoid, W/He
Model : ZUTP1500SE-H Series : ZUTPS Product Lines : Bolting Tools The ZUTP-Series of pumps achieve high pressure without the need for an intensifier. This allows for low maintenance, resulting in less cost for the end-user. The ZUTP1500-S Series with pendant-operated solenoid valve is ideal for multiple bolt tensioning applications as it allows for single-person operation. The operator can pressurize and depressurize the tensioner directly from the pendant. Solenoid-operated valve with 20 ft. pendant for remote control of valve and one-man operation Easily accessible manual override valve to release pressure if power is lost Safety relief valve limits output pressure Two-stage pump design provides high flow at low pressure for fast system fills and controlled flow at high pressure for accurate operation 1.7 hp heavy-duty universal motor provides the best performance-to-weight ratio Replaceable 10 micron reservoir breather and inline high pressure filter helps maintain oil cleanliness for optimum performance Panel-mounted 6" pressure gauge, with polycarbonate cover, is set into the protective metal shroud for improved visibility These products operate at ultra-high pressure, use only the specified fittings and hoses designed for these pressures.
