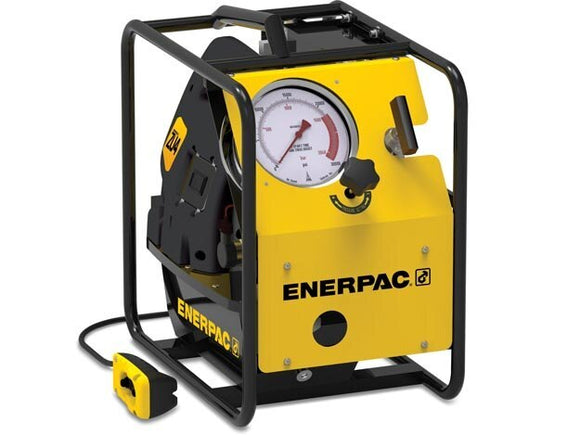

Pump, Elec. Universal, 1500 BAR, 115V, Solenoid
Model : ZUTP1500SB Series : ZUTPS Product Lines : Bolting Tools The ZUTP-Series of pumps achieve high pressure without the need for an intensifier. This allows for low maintenance, resulting in less cost for the end-user. The ZUTP1500-S Series with pendant-operated solenoid valve is ideal for multiple bolt tensioning applications as it allows for single-person operation. The operator can pressurize and depressurize the tensioner directly from the pendant. Solenoid-operated valve with 20 ft. pendant for remote control of valve and one-man operation Easily accessible manual override valve to release pressure if power is lost Safety relief valve limits output pressure Two-stage pump design provides high flow at low pressure for fast system fills and controlled flow at high pressure for accurate operation 1.7 hp heavy-duty universal motor provides the best performance-to-weight ratio Replaceable 10 micron reservoir breather and inline high pressure filter helps maintain oil cleanliness for optimum performance Panel-mounted 6" pressure gauge, with polycarbonate cover, is set into the protective metal shroud for improved visibility These products operate at ultra-high pressure, use only the specified fittings and hoses designed for these pressures.
Model : ZUTP1500SB Series : ZUTPS Product Lines : Bolting Tools The ZUTP-Series of pumps achieve high pressure without the need for an intensifier. This allows for low maintenance, resulting in less cost for the end-user. The ZUTP1500-S Series with pendant-operated solenoid valve is ideal for multiple bolt tensioning applications as it allows for single-person operation. The operator can pressurize and depressurize the tensioner directly from the pendant. Solenoid-operated valve with 20 ft. pendant for remote control of valve and one-man operation Easily accessible manual override valve to release pressure if power is lost Safety relief valve limits output pressure Two-stage pump design provides high flow at low pressure for fast system fills and controlled flow at high pressure for accurate operation 1.7 hp heavy-duty universal motor provides the best performance-to-weight ratio Replaceable 10 micron reservoir breather and inline high pressure filter helps maintain oil cleanliness for optimum performance Panel-mounted 6" pressure gauge, with polycarbonate cover, is set into the protective metal shroud for improved visibility These products operate at ultra-high pressure, use only the specified fittings and hoses designed for these pressures.
Specifications
| Power Source | Electric |
|---|---|
| Maximum Operating Pressure | 21,750 psi |
| Motor Power | 1.7 hp |
| Voltage | 115 V |
| Phase | 1 Ph |
| Frequency | 50 Hz |
| Reservoir Capacity | 231 in³ |
| Valve Operation | Solenoid |
| Usable Oil Capacity | 1 gal |
| Weight | 65 lb |
