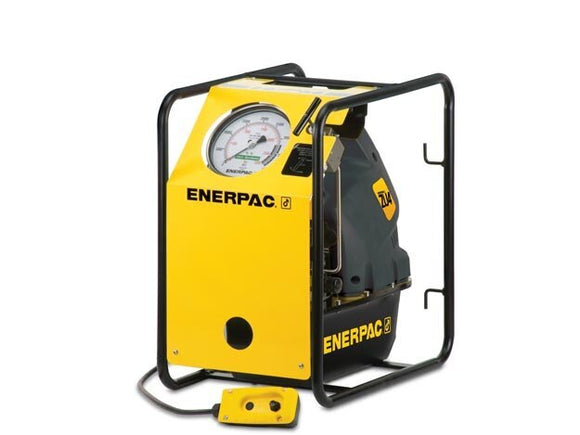

ZUTP1500B is an Enerpac electric hydraulic tensioning pump. Select it for the specified high-pressure bolt-tensioning application rather than treating it as a general cylinder or torque-wrench pump. This model has a listed 115 V supply and 1.0 gallon usable oil capacity.
Hydraulic tensioning equipment requires the correct pressure rating, oil volume and connection arrangement throughout the system. Match the pump to the exact tensioner and the manufacturer’s operating procedure.
Before ordering
- Confirm tensioner compatibility, pressure range and required oil volume.
- Verify the specified high-pressure hoses, fittings, controls and power-source requirements.
- Check the pump package and any additional equipment needed for the tensioning circuit.
Ask PLYET about ZUTP1500B. Provide the tensioner model and job requirements.
Specifications
| Power Source | Electric |
|---|---|
| Pump Series | ZUTP Series |
| Maximum Operating Pressure | 21,750 psi |
| Rated Oil Flow | 20 in³/min @ 21,750 psi |
| Motor Power | 1.7 hp |
| Voltage | 115V |
| Phase | Single Phase |
| Reservoir Capacity | 231 in³ |
| Valve Configuration | Manual tensioning valve |
| Valve Operation | Manual |
