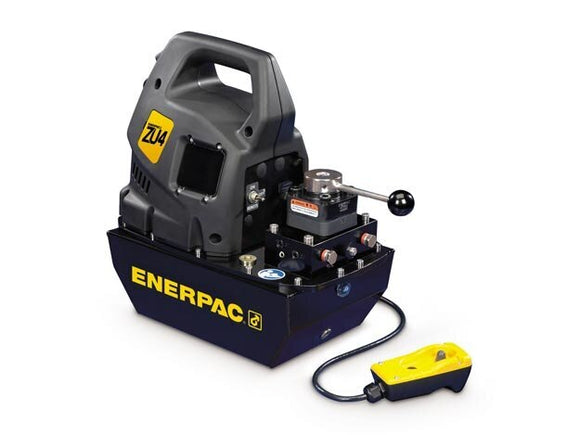

ZU4408PB is an Enerpac electric hydraulic pump. Motor supply: 115 V; cylinder circuit: Double-acting.
The electrical supply, directional valve and oil volume determine how this pump fits the application. Flow at working pressure is the useful reference when assessing cylinder speed.
Configuration details
- Valve model: VM43
- Valve configuration: 4-way, 3-position, Tandem Center
- Pump control: Pendant
Before ordering
Confirm voltage and phase, usable oil capacity, valve operation and cylinder action. Check whether the operating cycle suits the pump’s duty rating and any required factory options.
Ask PLYET about ZU4408PB. Include your equipment model and application details for selection help or a quote.
Specifications
| Power Source | Electric |
|---|---|
| Pump Series | ZU4 Series |
| Flow Group | ZU4 |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 60 in³/min @ 10,000 psi |
| Motor Power | 1.7 hp |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Reservoir Capacity | 415.8 in³ |
| Valve Model | VM43 |
| Valve Configuration | 4-Way, 3-Position |
| Valve Operation | Manual |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Double-Acting |
| Pendant Control | Yes |
| LCD Control | No |
| Venturi Valve Technology | No |
