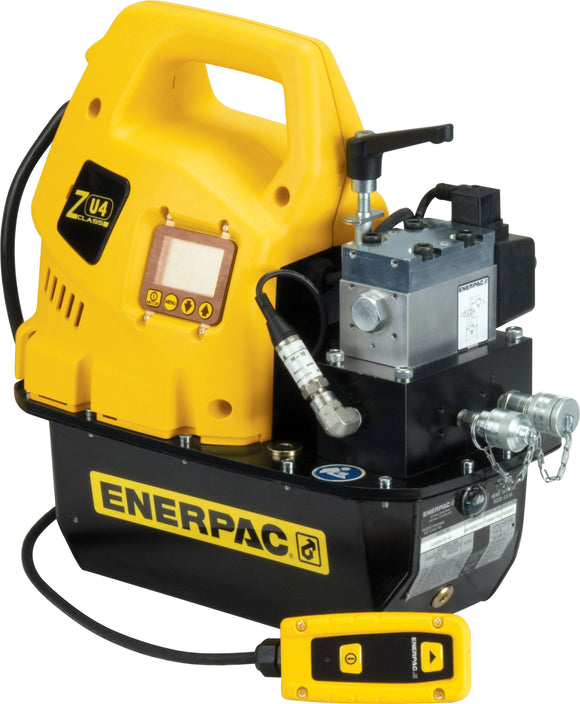

ZU4208TBQ (ZU4208TB-Q) Pump, Elec. Universal, Torque, VE42Q LCD 115V 8L (10,000 PSI)
Model : ZU4208TB-Q Series : ZU4T Product Lines : Bolting Tools Patented Z-Class pump technology provides high by-pass pressures for increased productivity—important in applications using long hose runs and high pressure-drop circuits, like heavy lifting or certain doubleacting tools. Enerpac ZU4 Hydraulic Pumps are built to power small to large torque wrenches. Choosing the right ZU4 torque wrench pump for your application is easy. Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps Powerful 1.7 hp universal electri
Model : ZU4208TB-Q Series : ZU4T Product Lines : Bolting Tools Patented Z-Class pump technology provides high by-pass pressures for increased productivity—important in applications using long hose runs and high pressure-drop circuits, like heavy lifting or certain doubleacting tools. Enerpac ZU4 Hydraulic Pumps are built to power small to large torque wrenches. Choosing the right ZU4 torque wrench pump for your application is easy. Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps Powerful 1.7 hp universal electri
Specifications
| Power Source | Electric |
|---|---|
| Pump Series | ZU4 Series |
| Flow Group | ZU4 |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 60 in³/min @ 10,000 psi |
| Motor Power | 1.7 hp |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Reservoir Capacity | 404.25 in³ |
| Valve Model | VE42TQ |
| Valve Configuration | Single-solenoid torque wrench valve |
| Valve Operation | Solenoid |
| Valve Function | Advance / Retract |
| Pendant Control | Yes |
| LCD Control | Yes |
| Venturi Valve Technology | No |
| Usable Oil Capacity | 404.25 in³ |
| Oil Flow – Max Pressure | 60 in³/min @ 10,000 psi |
