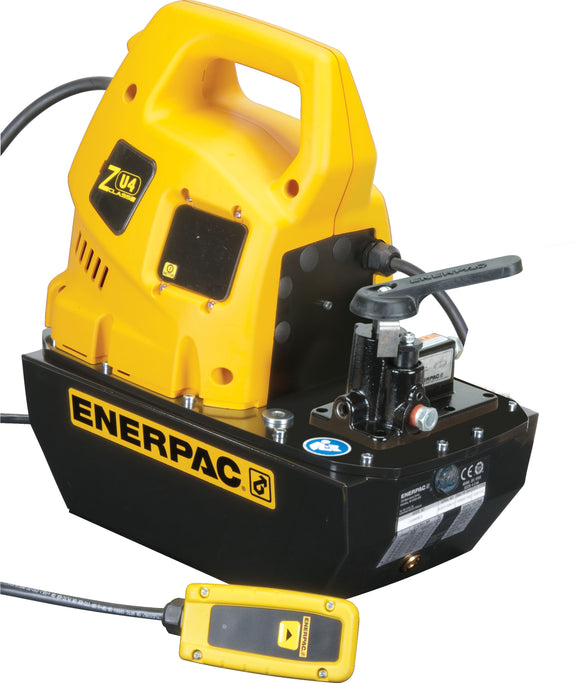

ZU4204MB Enerpac Electric Hydraulic Pump Universal, VM32 STD 115V 4L Manual
Specifications
| Power Source | Electric |
|---|---|
| Pump Series | ZU4 Series |
| Flow Group | ZU4 |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 60 in³/min @ 10,000 psi |
| Motor Power | 1.7 hp |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Reservoir Capacity | 277.2 in³ |
| Valve Model | VM32 |
| Valve Configuration | 3-Way, 2-Position |
| Valve Operation | Manual |
| Valve Function | Advance / Retract |
| Cylinder Compatibility | Single-Acting |
| Pendant Control | No |
| LCD Control | No |
| Venturi Valve Technology | No |
