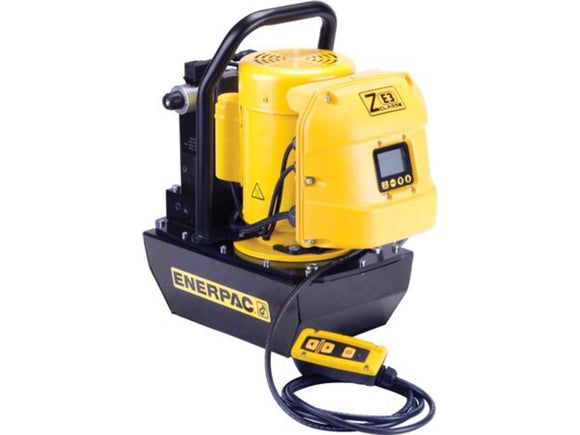

ZE3408SB is an Enerpac ZE3 electric hydraulic pump configured with a VE43 solenoid valve for double-acting circuits. The LCD-controlled model belongs to the induction-motor ZE pump family.
Choose the valve arrangement to match the cylinder’s powered advance and return requirements. Enerpac’s ordering matrix identifies this as a 115 V, single-phase configuration and lists ZE3 flow of 40 in³/min at 10,000 psi.
Before selecting this configuration
- Confirm the cylinder requires a double-acting circuit.
- Check usable oil volume against the complete system requirement.
- Verify voltage, frequency, control requirements and any installed options.
- Compare the required cycle time with flow at working pressure.
Contact PLYET with the cylinder model and intended operation to confirm the order configuration.
Specifications
| Power Source | Electric |
|---|---|
| Pump Series | ZE Series |
| Flow Group | ZE3 |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 40 in³/min @ 10,000 psi |
| Motor Power | 1 hp |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Reservoir Capacity | 415.8 in³ |
| Valve Model | VE43 |
| Valve Configuration | 4-Way, 3-Position |
| Valve Operation | Solenoid |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Double-Acting |
| Pendant Control | Yes |
| LCD Control | Yes |
| Venturi Valve Technology | No |
