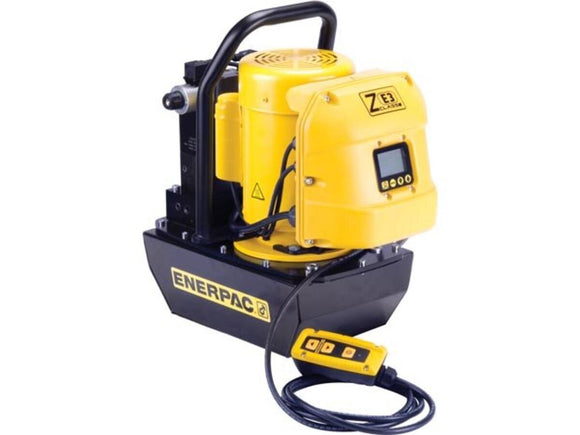

ZE3308SB is an Enerpac ZE3 electric hydraulic pump with a pendant-operated VE33 solenoid valve for single-acting cylinders. Its induction-motor platform is intended for extended-duty workshop and manufacturing applications.
The three-way, three-position tandem-center valve provides advance, hold and retract functions. This configuration offers 40 in³/min at 10,000 psi, so cylinder speed should be checked against the required working-pressure flow.
Configuration checks
- Confirm that your cylinder uses a single-acting circuit.
- Verify the 115 V, single-phase, 50/60 Hz supply.
- Size the usable oil supply for the cylinder stroke and hose volume.
- Check installation space, hose routing and any factory-installed options.
Ask PLYET to confirm the pump configuration and accessory requirements for your equipment.
Specifications
| Power Source | Electric |
|---|---|
| Pump Series | ZE Series |
| Flow Group | ZE3 |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 40 in³/min @ 10,000 psi |
| Motor Power | 1 hp |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Reservoir Capacity | 415.8 in³ |
| Valve Model | VE33 |
| Valve Configuration | 3-Way, 3-Position |
| Valve Operation | Solenoid |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| Pendant Control | Yes |
| LCD Control | Yes |
| Venturi Valve Technology | No |
