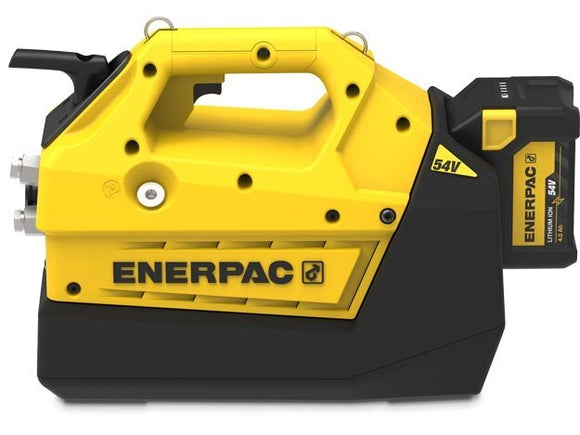

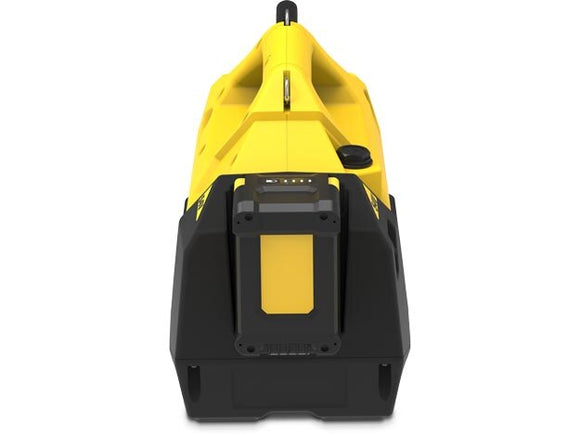

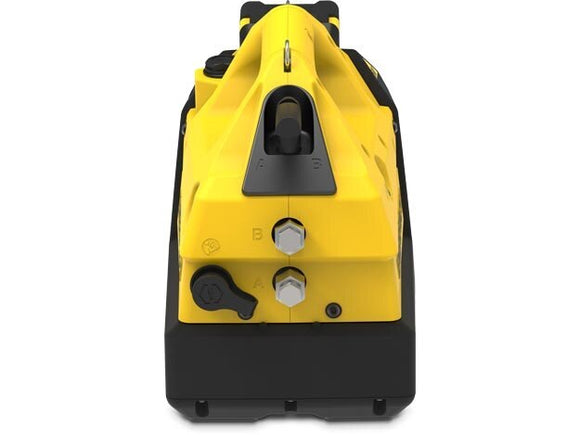

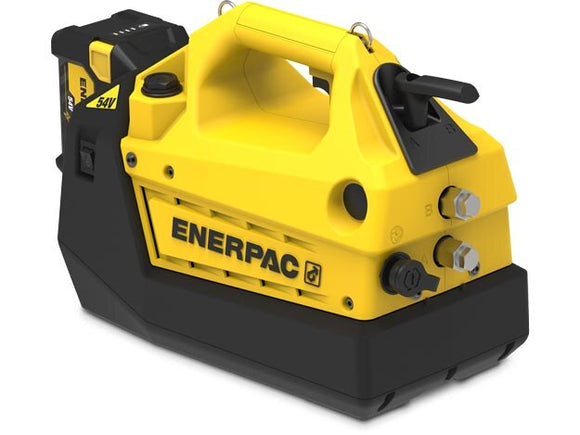

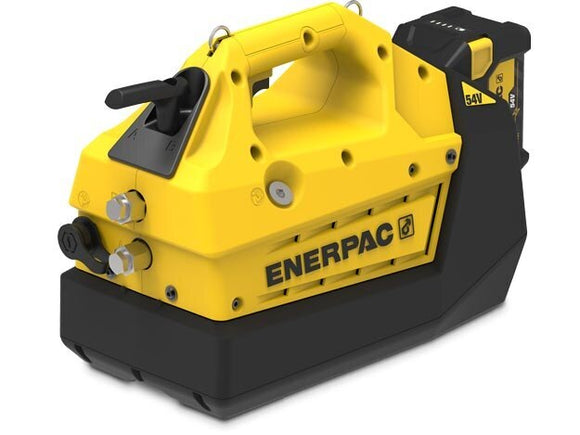

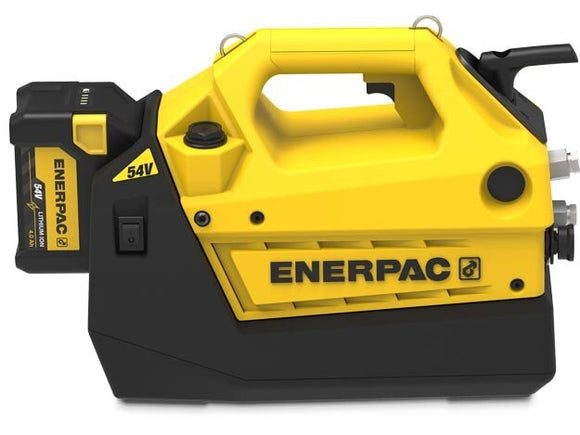

XC2404MB is an Enerpac 54 V cordless hydraulic pump with a manual four-way valve for double-acting cylinders. Its larger oil supply supports applications whose oil-volume requirement exceeds the smaller XC2402MB configuration.
The brushless motor supplies hydraulic flow without a mains extension cord. Variable-speed trigger control helps regulate advance, and the bladder reservoir allows operation in different orientations.
Check before ordering
- Usable oil capacity is 241 in³; size the circuit using actual cylinder and hose volumes.
- Confirm the double-acting valve arrangement and required tool connections.
- Verify the supplied batteries and 115 V charger package.
- Check flow at working pressure when estimating the required cycle time.
Ask PLYET to confirm the configuration against your cylinder model and intended duty.
Specifications
| Power Source | Battery |
|---|---|
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 20 in³/min at 10,000 psi |
| Motor Power | 0.94 hp |
| Reservoir Capacity | 256 in³ |
| Valve Configuration | 4-way, 3-position |
| Valve Operation | Manual |
| Cylinder Compatibility | Double-acting |
| Weight | 31.8 lb |
