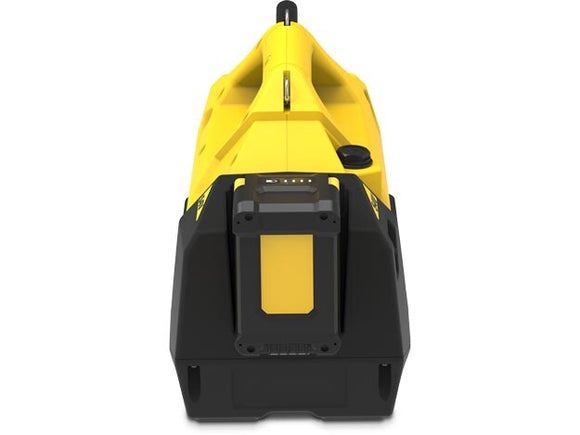

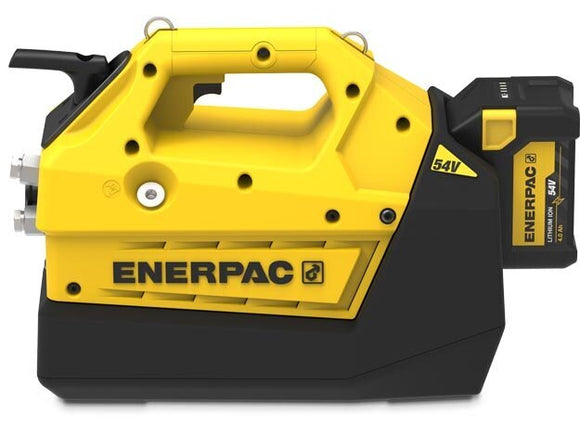

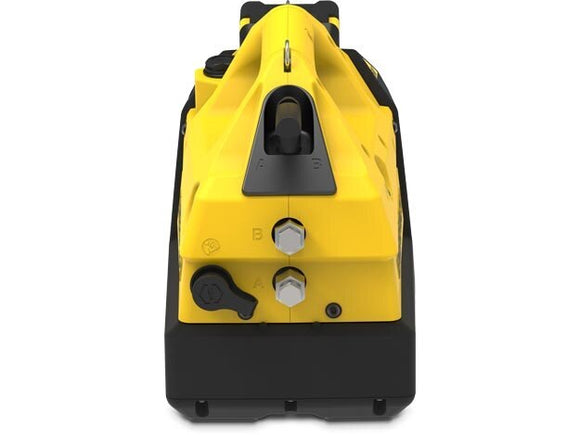

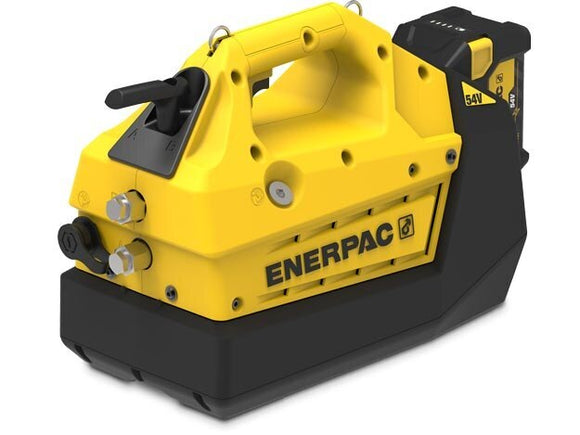

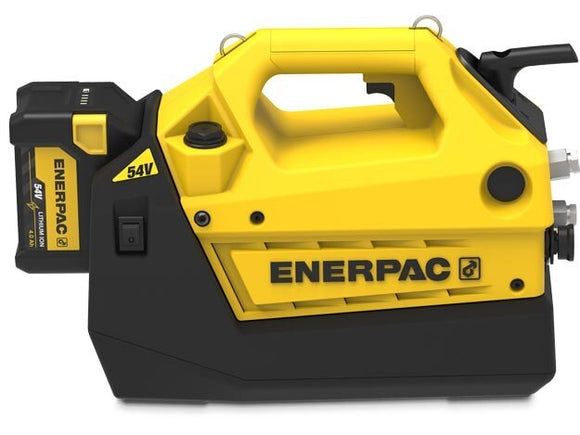

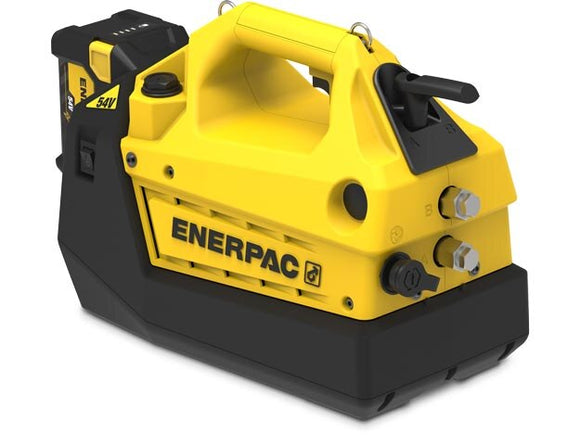

XC2402MB is an Enerpac XC2 cordless hydraulic pump for double-acting cylinders. Its manual four-way, three-position valve controls the circuit, while a variable-speed trigger regulates advance.
The 54 V platform provides hydraulic power where access to mains electricity is inconvenient. A bladder reservoir permits operation in different orientations and helps reduce contamination.
Choose the oil capacity deliberately
- This model lists 122 in³ of usable oil; check the complete cylinder and hose requirement.
- Confirm that the cylinder needs a double-acting valve arrangement.
- Verify the battery package and 115 V charger configuration for the supplied SKU.
Contact PLYET with your cylinder model and working conditions to confirm the cordless pump configuration.
Specifications
| Power Source | Battery |
|---|---|
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 20 in³/min at 10,000 psi |
| Motor Power | 0.94 hp |
| Reservoir Capacity | 134 in³ |
| Valve Configuration | 4-way, 3-position |
| Valve Operation | Manual |
| Cylinder Compatibility | Double-acting |
| Weight | 28.3 lb |
