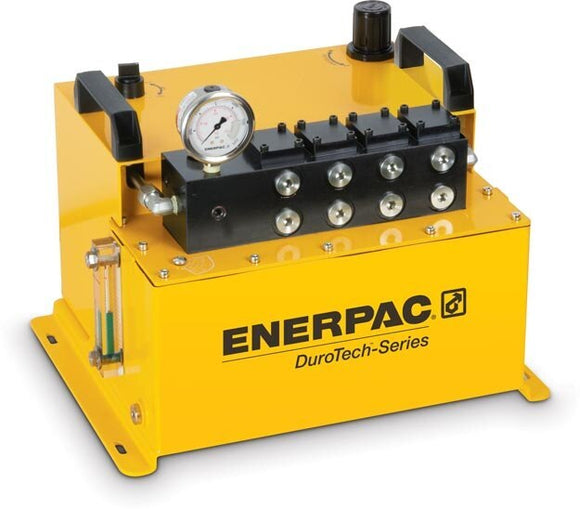

WAP30008D Air Driven Hydraulic Pump, 252 in3/min Oil Flow at 100 psi, 415 in3 Usable Oil
Model : WAP30008D
Series : WAP
Product Lines : Workholding Tools
- Industrial, high-cycle, high-flow hydraulic supply in an economical air-powered unit
- Heavy-duty construction, including steel reservoir and protective steel shroud
- Long-life, fully serviceable air motor
- Dual pump action off ers high oil capacity and smooth flow
- On-demand stall / restart operation automatically maintains system pressure
- Adjustable hydraulic pressure through built-in air filter / regulator
- Requires no air lubrication
- Reduced noise level (75dBA)
- Standard four-station DO3 manifold
- Max Rated Hydraulic Pressure based on 120 psi air pressure for the WAP07 and WAP 15 models and 110 psi air pressure for the WAP30 model
- Max hydraulic pressure at 100 psi air at 0 hydraulic flow
- Max hydraulic flow at 100 psi air at 0 psi hydraulic pressure
