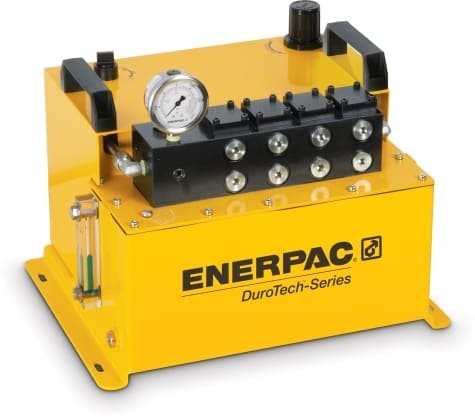

Industrial, high-cycle, high-flow hydraulic supply in an economical air-powered unit
- Heavy-duty construction, including steel reservoir and protective steel shroud
- Long-life, fully serviceable air motor
- Dual pump action offers high oil capacity and smooth flow
- On-demand stall / restart operation automatically maintains system pressure
- Adjustable hydraulic pressure through built-in air filter / regulator
- Requires no air lubrication
- Reduced noise level (75dBA)
- Standard four-station DO3 manifold
DuroTech Power Unit Instruction Sheet
Model : WAP07008D Series : WAP Product Lines : Workholding Tools Industrial, high-cycle, high-flow hydraulic supply in an economical air-powered unit Heavy-duty construction, including steel reservoir and protective steel shroud Long-life, fully serviceable air motor Dual pump action off ers high oil capacity and smooth flow On-demand stall / restart operation automatically maintains system pressure Adjustable hydraulic pressure through built-in air filter / regulator Requires no air lubrication Reduced noise level (75dBA) Standard four-station DO3 manifold Max Rated Hydraulic Pressure based on 120 psi air pressure for the WAP07 and WAP 15 models and 110 psi air pressure for the WAP30 model Max hydraulic pressure at 100 psi air at 0 hydraulic flow Max hydraulic flow at 100 psi air at 0 psi hydraulic pressure
