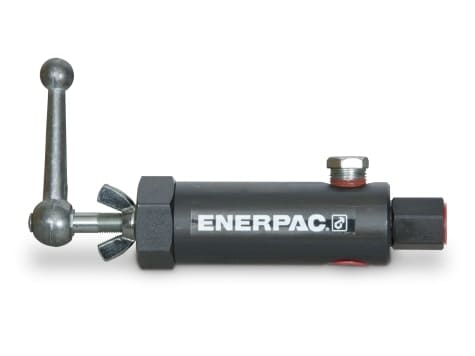

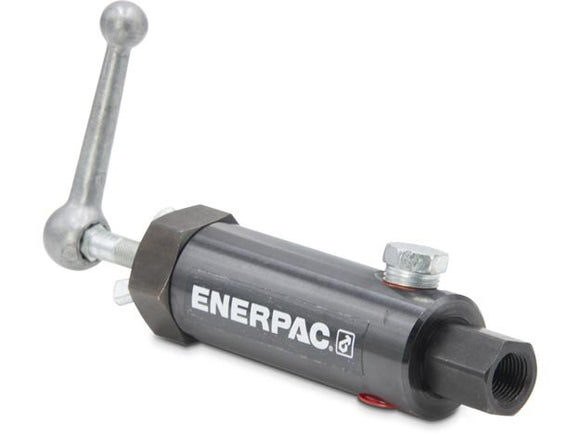

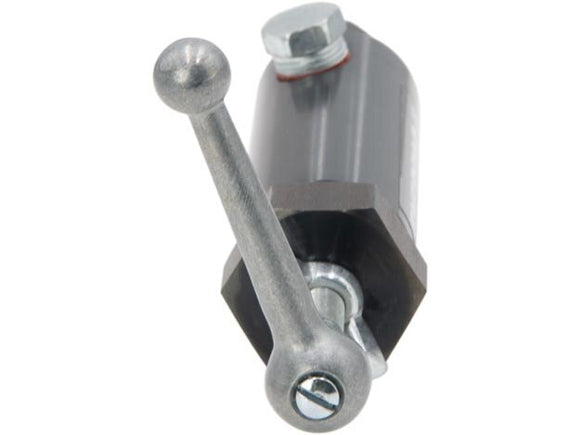

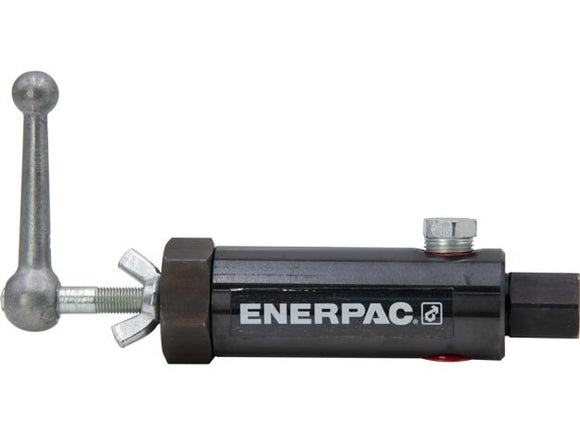

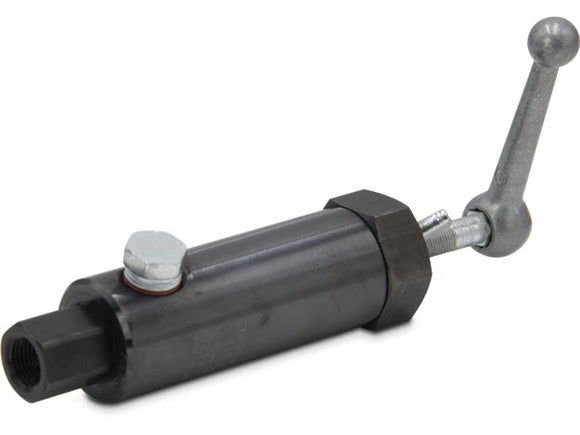

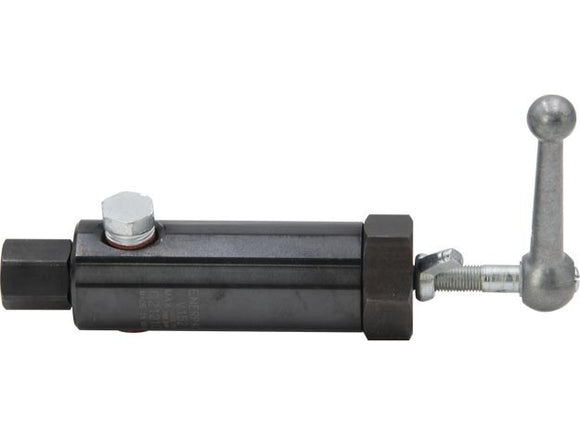

V152 Pressure Relief Valve – High-Performance Hydraulic Control
Engineered for precision and reliability, the V152 Pressure Relief Valve is your go-to solution for controlling hydraulic pressure and protecting components from overload. Designed for use in high-pressure hydraulic systems, the V152 delivers consistent performance with ±3% repeatability, even under demanding conditions.
With an adjustable pressure range from 800 to 10,000 psi (55–700 bar), this valve provides accurate and responsive control. A simple turn of the handle allows easy pressure adjustments on the fly. The maximum oil flow capacity of 1,830 in³/min (30 l/min) ensures optimal performance in a wide range of industrial applications.
Key features include:
- 3/8" NPT or NPTF oil ports for reliable, leak-resistant connections
- Compact, rugged design built to handle high pressure environments
- Viton seals available in the V152NV model for high-temperature durability
- Nickel-plated option (V152NV) for superior corrosion resistance
- Includes 3 ft return line hose kit for added convenience
Whether you're setting system limits or protecting your components, the V152 gives you the control and dependability you need in any hydraulic application.
