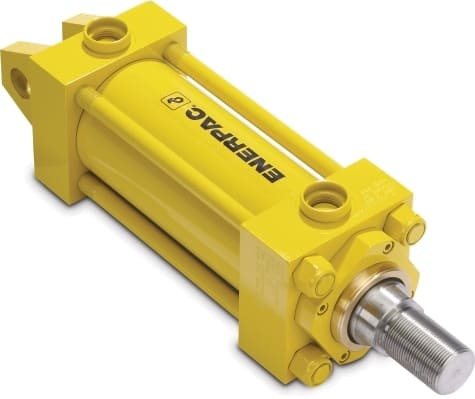

TRCM2004 Enerpac TRCM-2004 Tie Rod Cyl, 2.0" Bore, 4" Stroke, No Cush.
Model : TRCM2004 Series : TR Product Lines : Workholding Tools Clevis mount cylinders include pivot pin for mounting in your machine Standard rod eyes and rod clevises available for each bore size. NFPA style MP1 Designed to carry shear loads Pivot pins should be carried by rigidly held bearings and closely fit for the entire length of the pin Think Safety Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings! Pump Selection A double-acting cylinder must be powered by a pump with a 4-way valve.
Model : TRCM2004 Series : TR Product Lines : Workholding Tools Clevis mount cylinders include pivot pin for mounting in your machine Standard rod eyes and rod clevises available for each bore size. NFPA style MP1 Designed to carry shear loads Pivot pins should be carried by rigidly held bearings and closely fit for the entire length of the pin Think Safety Manufacturer’s rating of load and stroke are maximum safe limits. Good practice encourages using only 80% of these ratings! Pump Selection A double-acting cylinder must be powered by a pump with a 4-way valve.
Specifications
| Cylinder Stroke | 4 in |
|---|---|
| Cylinder Type | Tie Rod Hydraulic Cylinders |
| Product Family | Hydraulic Workholding Cylinders |
| Series | TR |
| Push Force | 15,700 lb |
| Pull Force | 8,300 lb |
