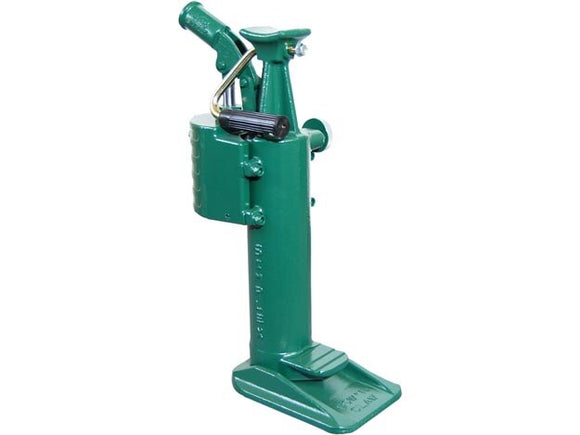

TJH109 is a Simplex lifting jack. Rated capacity: 10 ton; minimum toe height: 2.25 in.
Select the jack for the lifting point, initial clearance and required travel. Check whether the stated capacity applies at the head, toe or another designated lifting point.
Configuration details
- Stroke: 9 in.
- Weight: 56 lb
Before ordering
Confirm base support, load contact and the manufacturer’s lifting and blocking procedure. Match the minimum height and stroke to the job rather than relying on tonnage alone.
Ask PLYET about TJH109. Include your equipment model and application details for selection help or a quote.
Specifications
| Power Source | Hydraulic |
|---|---|
| Load Capacity | 10 ton |
| Cylinder Stroke | 9 in |
| Return Type | Spring |
| Weight | 56 lb |
