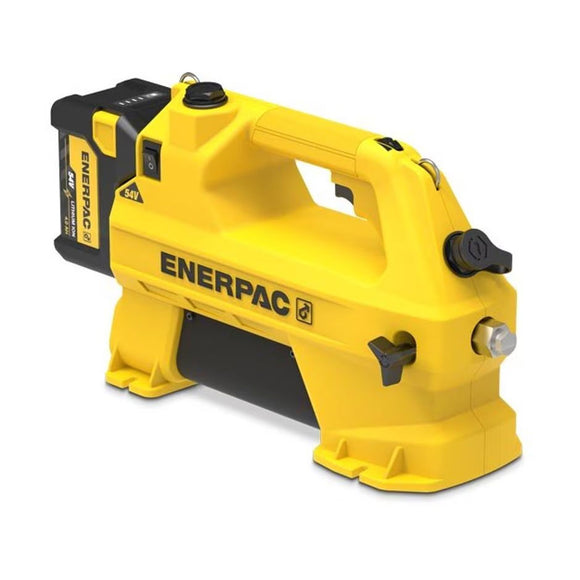

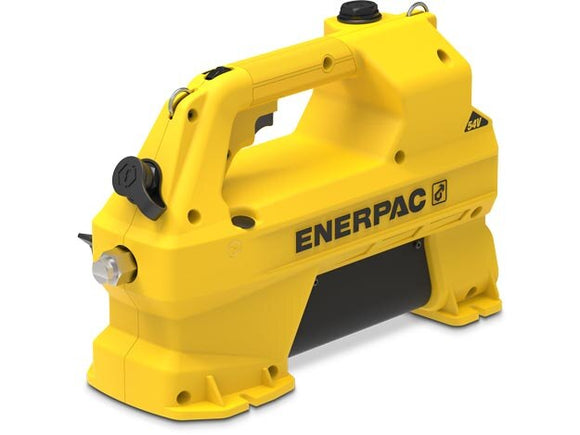

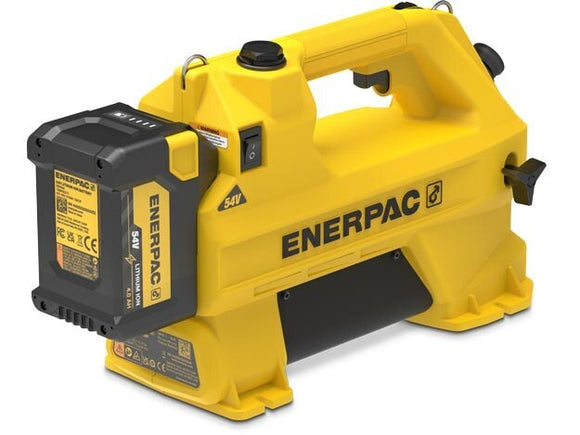

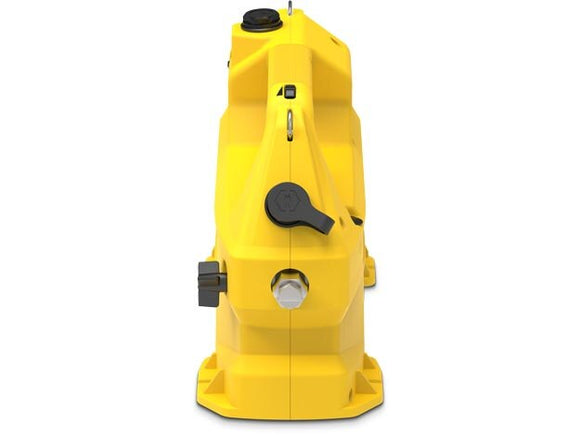

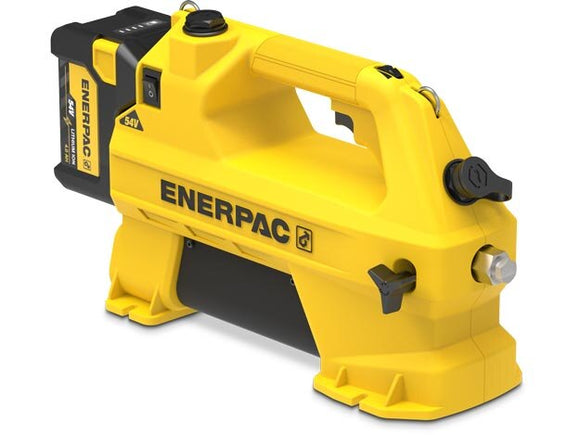

SC1201MB is an Enerpac cordless hydraulic pump. Cylinder circuit: Single-acting; usable oil capacity: 61 in³.
Battery power can simplify hydraulic work where mains access is inconvenient. Choose the valve and reservoir configuration for the tool rather than assuming all cordless pumps have the same circuit.
Model-specific details
- Valve configuration: 3-way, 2-position
- Flow at 10,000 psi: 12 in³/min
- Weight: 20.2 lb
The bladder reservoir permits operation in different orientations and helps limit contamination.
Before ordering
Confirm cylinder action, usable oil demand, battery package and charger supply for this SKU. Check flow under load when estimating the time required for the operation.
Ask PLYET about SC1201MB. Include your equipment model and application details for selection help or a quote.
Specifications
| Power Source | Battery |
|---|---|
| Pump Series | SC Series |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 73.23 in³ |
| Valve Configuration | 3-Way, 2-Position |
| Cylinder Compatibility | Single-Acting |
| Battery Voltage | 54V |
| Battery Capacity | 4 Ah |
| Usable Oil Capacity | 3722.45 in³ |
| Control Type | Manual |
| Oil Flow – No Load | 115 in³/min |
| Number of Batteries | 2 |
| Charger Included | Yes |

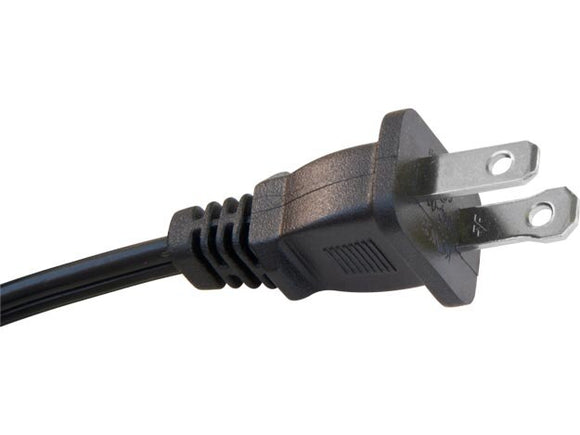

| Charger Voltage | 115V |
| Battery Included | Yes |
| Oil Flow – Max Pressure | 12 in³/min |
