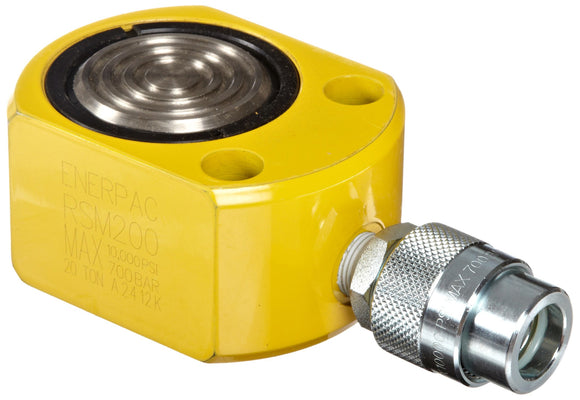

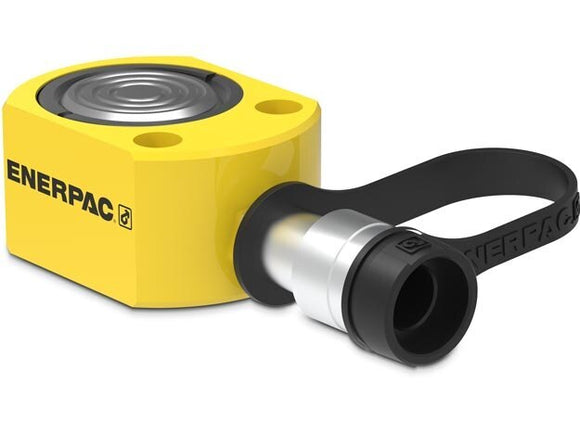

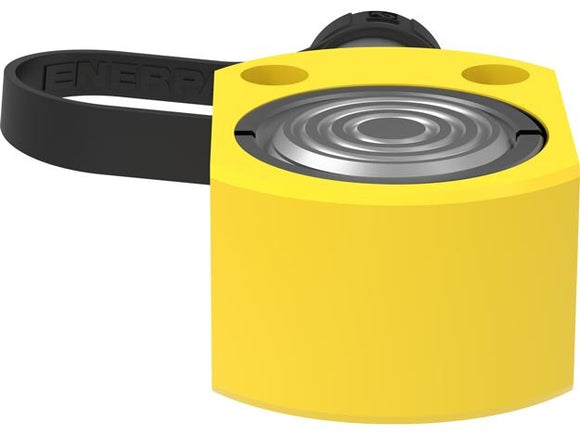

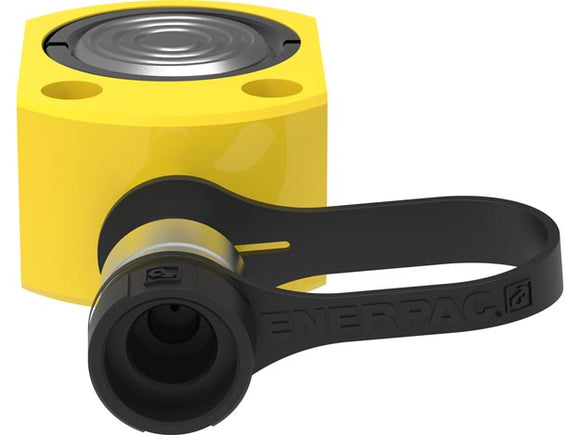

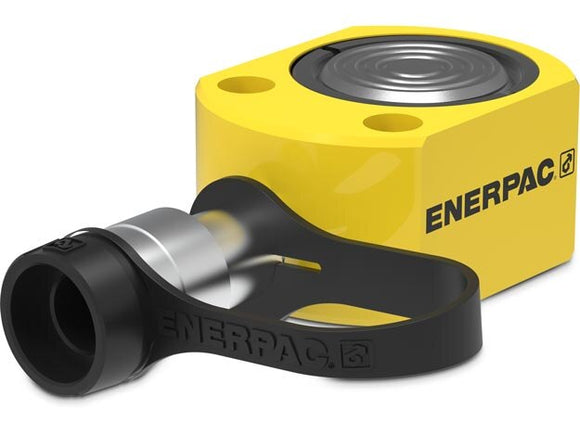

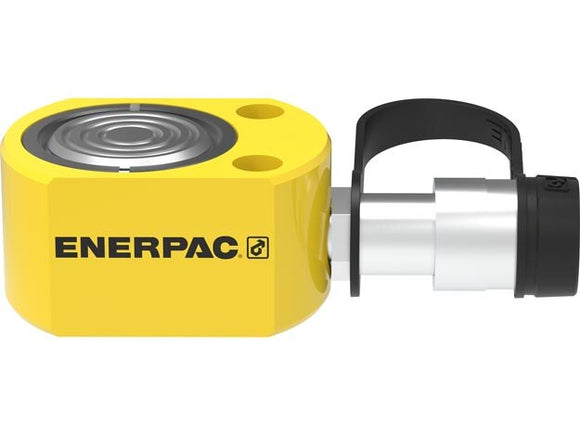

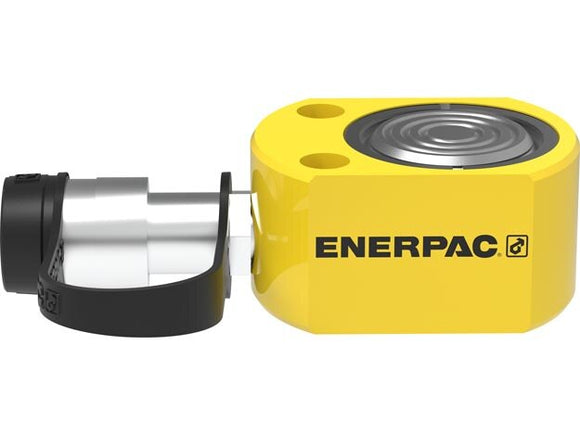

RSM200 is an Enerpac low-height hydraulic cylinder. Stroke: 0.44 in.; collapsed height: 2.03 in.
Its short travel makes the required movement a critical check; allow for both the starting gap and the full working stroke. The listed low starting height is useful only if the saddle and connections also fit the available clearance.
Configuration details
- Return arrangement: Single-Acting, Spring Return
Before ordering
Measure the initial gap and final lift height. Check saddle contact, side-load restrictions, return arrangement and the usable oil needed from the pump.
Ask PLYET about RSM200. Include your equipment model and application details for selection help or a quote.
Specifications
| Load Capacity | 22.1 Ton |
|---|---|
| Cylinder Stroke | 0.44 in |
| Cylinder Type | Low Height Hydraulic Cylinders |
| Product Family | Hydraulic Cylinders |
| Series | RSM |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Lock Nut | No |
| Low Height | Yes |
