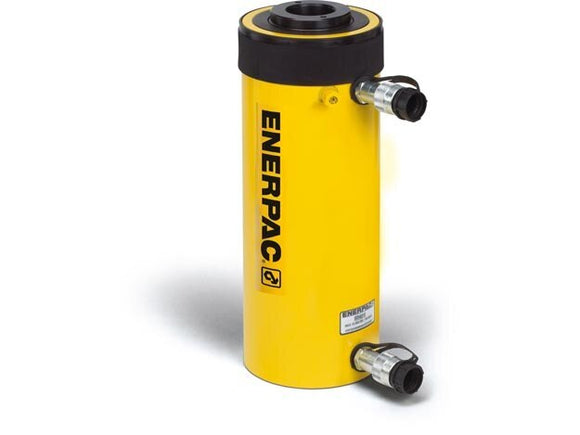

RRH307 is an Enerpac hollow-plunger hydraulic cylinder. Stroke: 7 in.; return arrangement: Double-Acting, Hydraulic Return.
A through-center arrangement allows a suitable rod or cable to pass through the plunger for tensioning and pulling setups. Check the bore and attachment geometry as well as the force requirement. This model uses hydraulic power for return as well as advance.
For this model
- Collapsed height: 13 in.
Before ordering
Confirm the center-hole clearance, mounting arrangement and return circuit. For pulling work, check the complete attachment system rather than selecting by cylinder tonnage alone.
Ask PLYET about RRH307. Include your equipment model and application details for selection help or a quote.
Specifications
| Load Capacity | 36 Ton |
|---|---|
| Cylinder Stroke | 7 in |
| Cylinder Type | Hollow Plunger Hydraulic Cylinders |
| Product Family | Hydraulic Cylinders |
| Series | RRH |
| Cylinder Action | Double Acting |
| Return Type | Hydraulic Return |
| Cylinder Material | Steel |
| Plunger Type | Hollow |
| Lock Nut | No |
| Low Height | No |
