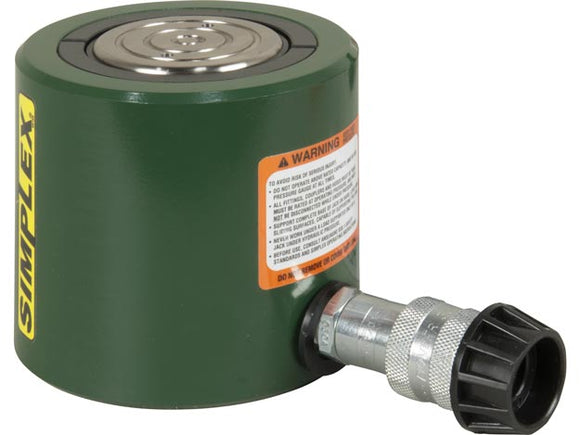

RLS502 is a Simplex low-height hydraulic cylinder. Rated capacity: 50 ton; stroke: 2.38 in.
Use the low-height format where the starting clearance limits cylinder selection. The available travel must still cover the required movement without exceeding the rated stroke. This model uses a spring-return arrangement.
Selection reference
- Collapsed height: 4.81 in.
- Return arrangement: Single-Acting, Spring Return
Before ordering
Measure the initial gap and final lift height. Check saddle contact, side-load restrictions, return arrangement and the usable oil needed from the pump.
Ask PLYET about RLS502. Include your equipment model and application details for selection help or a quote.
Specifications
| Maximum Operating Pressure | 10,000 psi |
|---|---|
| Load Capacity | 50 ton |
| Cylinder Stroke | 2.38 in |
| Product Family | Hydraulic Cylinders |
| Series | RLS |
| Return Type | Spring Return |
| Collapsed Height | 4.81 in |
| Weight | 24 lb |
