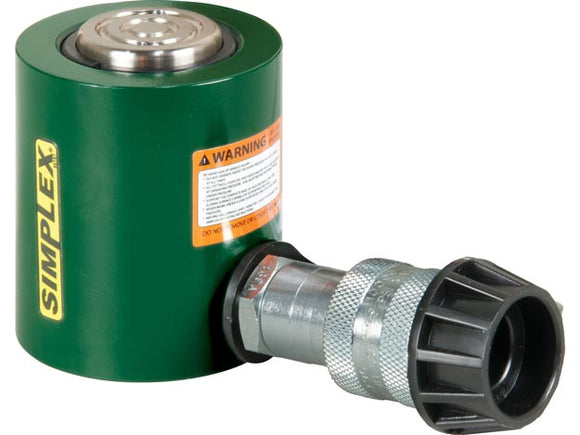

RLS101 is a Simplex low-height hydraulic cylinder. Rated capacity: 10 ton; stroke: 1.5 in.
The listed low starting height is useful only if the saddle and connections also fit the available clearance.
Selection reference
- Collapsed height: 3.47 in.
- Return arrangement: Single-Acting, Spring Return
Before ordering
Measure the initial gap and final lift height. Check saddle contact, side-load restrictions, return arrangement and the usable oil needed from the pump.
Ask PLYET about RLS101. Include your equipment model and application details for selection help or a quote.
Specifications
| Maximum Operating Pressure | 10,000 psi |
|---|---|
| Load Capacity | 10 ton |
| Cylinder Stroke | 1.5 in |
| Product Family | Hydraulic Cylinders |
| Series | RLS |
| Return Type | Spring Return |
| Collapsed Height | 3.47 in |
| Weight | 9 lb |
