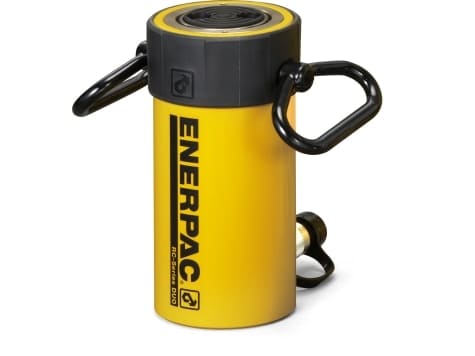

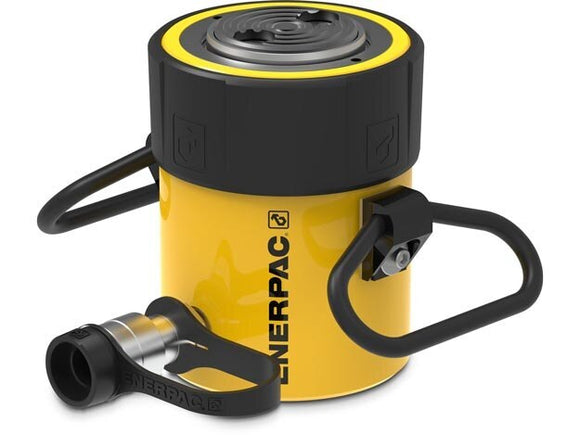

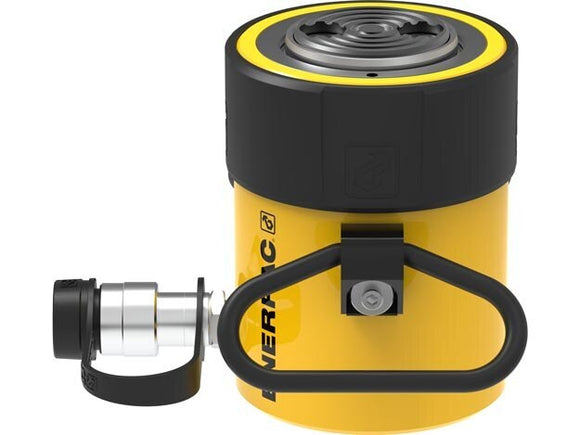

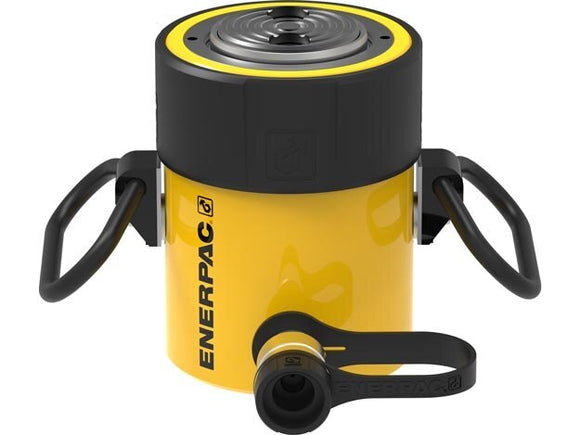

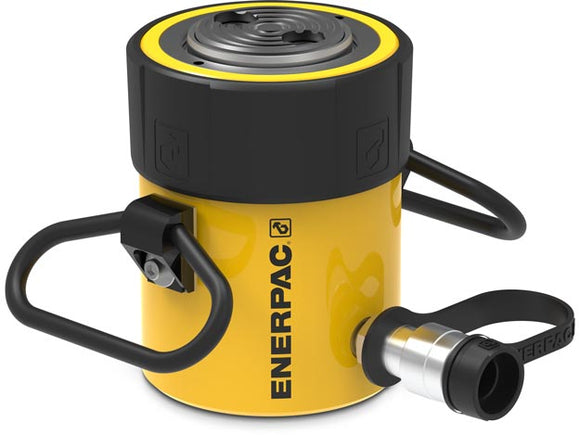

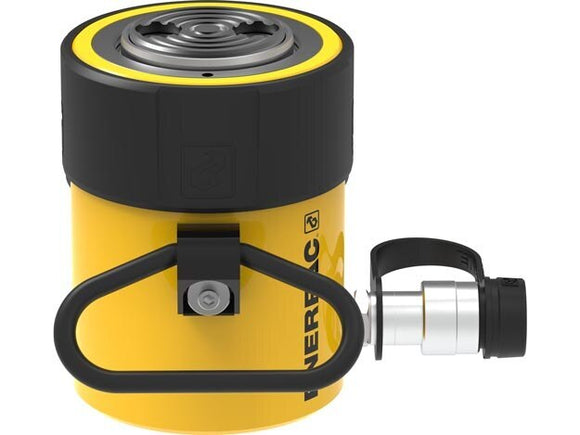

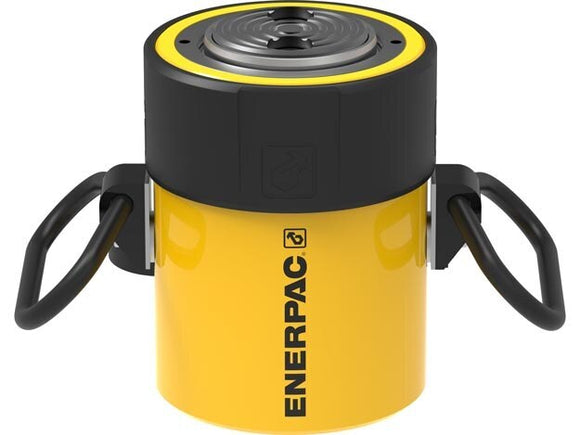

RC502 is an Enerpac hydraulic cylinder. Stroke: 2 in.; return arrangement: Single-Acting, Spring Return.
Select the cylinder by the load, movement and installation space required at the workpiece. A matching capacity class alone does not establish that the cylinder will fit the job. This model uses a spring-return arrangement.
Configuration details
- Collapsed height: 6.94 in.
The manufacturer’s bearing arrangement uses composite wear bands to guide the plunger during operation.
Before ordering
Check collapsed height, stroke, saddle contact and mounting details. Confirm the return arrangement and pump oil supply for the complete circuit before ordering.
Ask PLYET about RC502. Include your equipment model and application details for selection help or a quote.
Specifications
| Load Capacity | 55.2 Ton |
|---|---|
| Cylinder Stroke | 2 in |
| Cylinder Type | General Purpose Hydraulic Cylinders |
| Product Family | Hydraulic Cylinders |
| Series | RC |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Steel |
| Plunger Type | Solid |
| Lock Nut | No |
| Low Height | No |
