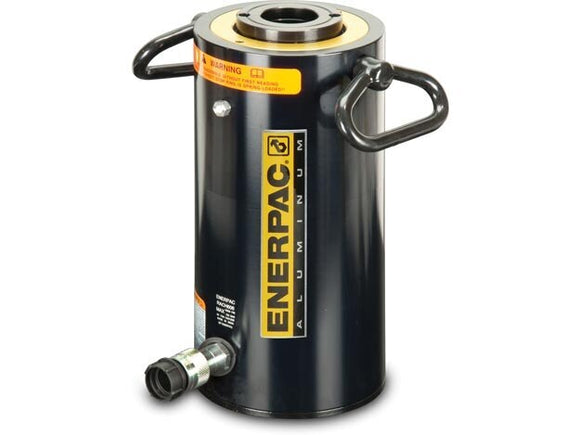

RACH606 is an Enerpac hollow-plunger hydraulic cylinder. Stroke: 5.91 in.; return arrangement: Single-Acting, Spring Return.
The aluminum construction is relevant when the cylinder must be moved between work areas; still check the listed weight and handling method.
Configuration details
- Collapsed height: 14.97 in.
Before ordering
Confirm the center-hole clearance, mounting arrangement and return circuit. For pulling work, check the complete attachment system rather than selecting by cylinder tonnage alone.
Ask PLYET about RACH606. Include your equipment model and application details for selection help or a quote.
Specifications
| Load Capacity | 65.6 Ton |
|---|---|
| Cylinder Stroke | 5.91 in |
| Cylinder Type | Hollow Plunger Hydraulic Cylinders |
| Product Family | Hydraulic Cylinders |
| Series | RACH |
| Cylinder Action | Single Acting |
| Return Type | Spring Return |
| Cylinder Material | Aluminum |
| Plunger Type | Hollow |
| Lock Nut | No |
| Low Height | No |
