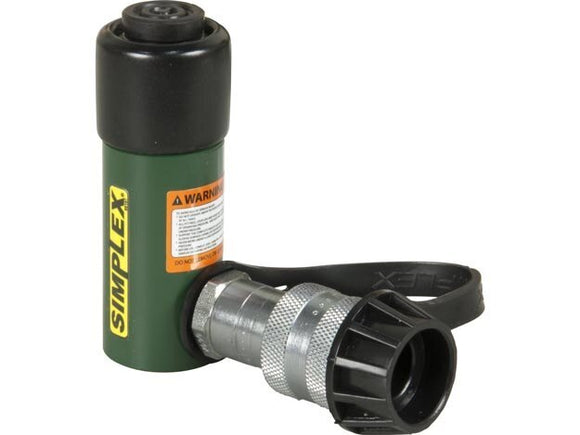

R51 is a Simplex hydraulic cylinder. Rated capacity: 5 ton; return arrangement: Single-Acting, Spring Return.
Select the cylinder by the load, movement and installation space required at the workpiece. A matching capacity class alone does not establish that the cylinder will fit the job. This model uses a spring-return arrangement.
Model-specific details
- Collapsed height: 4.37 in.
Before ordering
Check collapsed height, stroke, saddle contact and mounting details. Confirm the return arrangement and pump oil supply for the complete circuit before ordering.
Ask PLYET about R51. Include your equipment model and application details for selection help or a quote.
Specifications
| Maximum Operating Pressure | 10,000 psi |
|---|---|
| Load Capacity | 5 ton |
| Product Family | Hydraulic Cylinders |
| Series | R |
| Return Type | Spring Return |
| Collapsed Height | 4.37 in |
| Weight | 2.3 lb |
