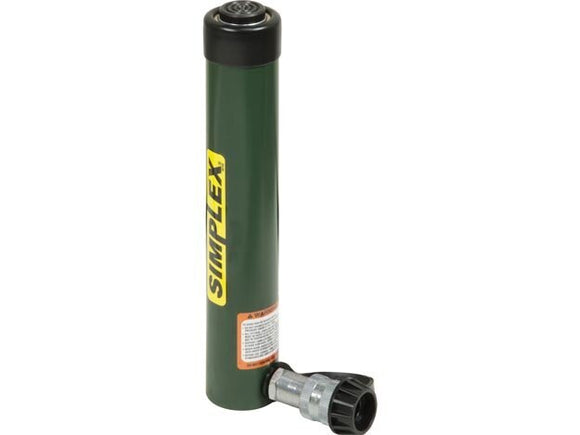

R1010 is a Simplex hydraulic cylinder. Rated capacity: 10 ton; stroke: 10 in.
The longer travel requires room for the extended cylinder as well as sufficient pump oil for the full movement.
Configuration details
- Return arrangement: Single-Acting, Spring Return
- Collapsed height: 13.78 in.
Before ordering
Check collapsed height, stroke, saddle contact and mounting details. Confirm the return arrangement and pump oil supply for the complete circuit before ordering.
Ask PLYET about R1010. Include your equipment model and application details for selection help or a quote.
Specifications
| Maximum Operating Pressure | 10,000 psi |
|---|---|
| Load Capacity | 10 ton |
| Cylinder Stroke | 10 in |
| Product Family | Hydraulic Cylinders |
| Series | R |
| Return Type | Spring Return |
| Collapsed Height | 13.78 in |
| Weight | 14 lb |
