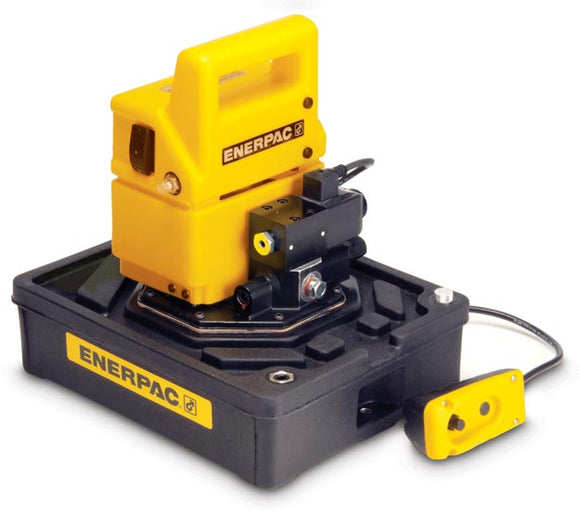

PUD1101B is an Enerpac electric hydraulic pump. Motor supply: 115 V; cylinder circuit: Single-acting.
The electrical supply, directional valve and oil volume determine how this pump fits the application. Flow at working pressure is the useful reference when assessing cylinder speed.
Selection reference
- Pump control: Pendant
- Usable oil capacity: 1 gal
Before ordering
Confirm voltage and phase, usable oil capacity, valve operation and cylinder action. Check whether the operating cycle suits the pump’s duty rating and any required factory options.
Ask PLYET about PUD1101B. Include your equipment model and application details for selection help or a quote.
Specifications
| Power Source | Electric |
|---|---|
| Pump Series | PUD Series |
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 20 in³/min @ 10,000 psi |
| Motor Power | 0.5 hp |
| Voltage | 115V |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Reservoir Capacity | 231 in³ |
| Valve Configuration | Electric dump valve |
| Valve Operation | Solenoid Dump |
| Valve Function | Advance / Auto-Retract |
| Cylinder Compatibility | Single-Acting |
| Pendant Control | Yes |
| LCD Control | No |
| Venturi Valve Technology | No |
