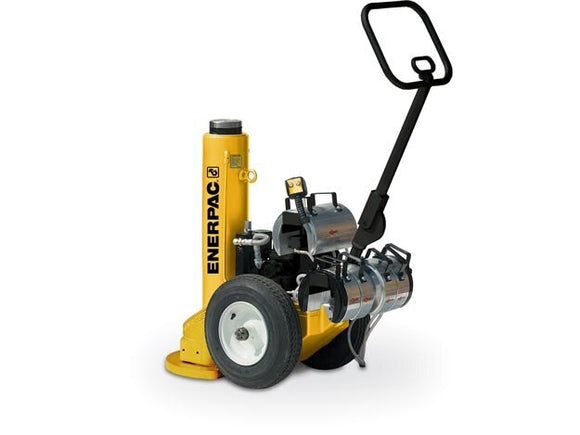

PRASA10016L is an Enerpac lifting jack. Rated capacity: 100 ton; stroke: 16 in.
Select the jack for the lifting point, initial clearance and required travel. Check whether the stated capacity applies at the head, toe or another designated lifting point.
Selection reference
- Weight: 510 lb
Before ordering
Confirm base support, load contact and the manufacturer’s lifting and blocking procedure. Match the minimum height and stroke to the job rather than relying on tonnage alone.
Ask PLYET about PRASA10016L. Include your equipment model and application details for selection help or a quote.
Specifications
| Power Source | Air |
|---|---|
| Maximum Operating Pressure | 10,000 psi |
| Valve Configuration | Pneumatic |
| Load Capacity | 100 ton |
| Cylinder Stroke | 16 in |
| Collapsed Height | 26 in |
| Weight | 510 lb |
