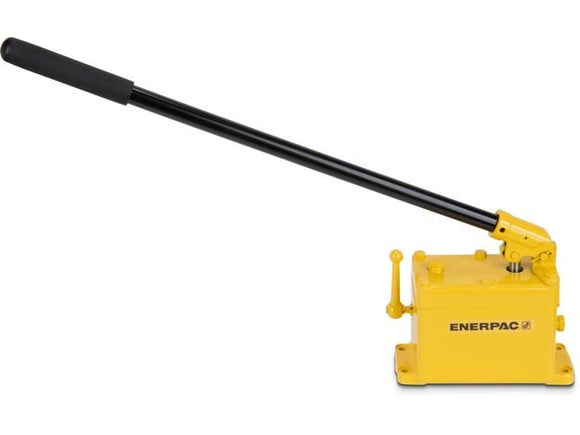

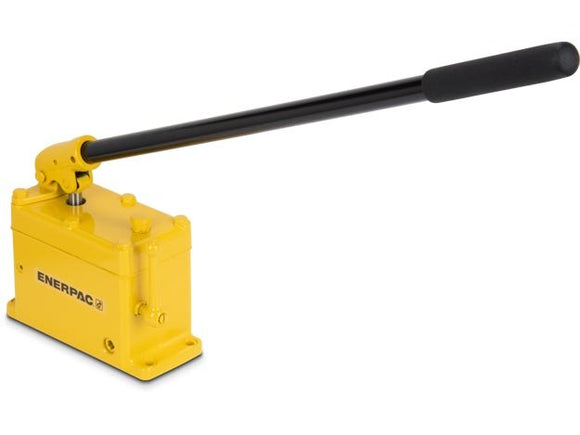

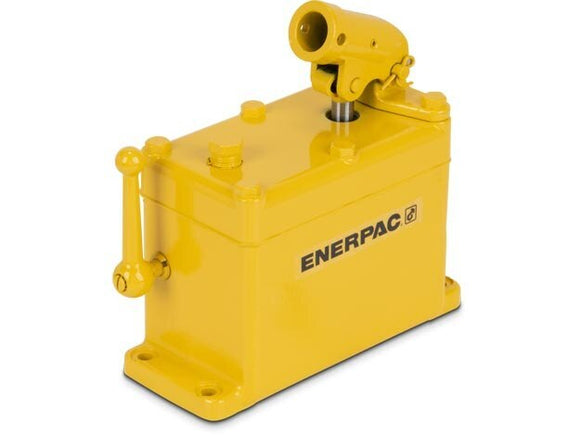

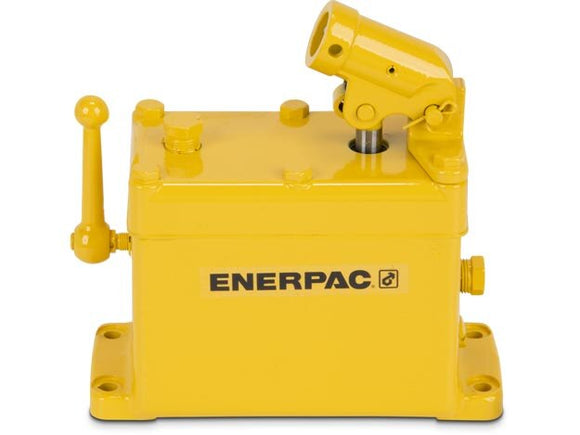

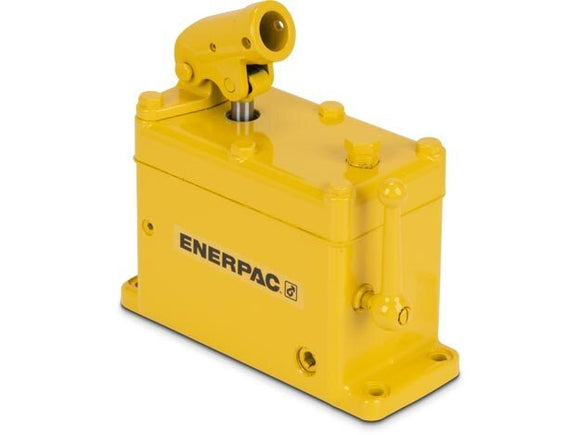

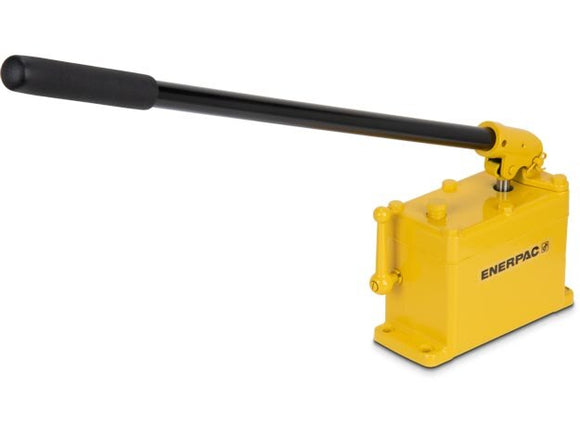

P51 is an Enerpac hydraulic hand pump. Pump configuration: Single Speed; cylinder circuit: Single-acting.
Manual hydraulic power is useful for occasional operation and jobs where an electric or compressed-air supply is inconvenient. Select the pump configuration for the cylinder circuit and the amount of oil it must move.
Model-specific details
- Usable oil capacity: 50 in³
- Weight: 12 lb
The single-speed arrangement supplies the listed displacement on each stroke. Check the required oil volume and handle effort when planning repeated operation.
Before ordering
Check usable oil volume, single- or double-acting valve requirements and displacement per stroke. Match every hose and connection to the system pressure and required port arrangement.
Ask PLYET about P51. Include your equipment model and application details for selection help or a quote.
Specifications
| Power Source | Manual |
|---|---|
| Pump Series | P-Series Low Pressure |
| Maximum Operating Pressure | 3,000 psi |
| Reservoir Capacity | 50 in³ |
| Valve Configuration | Release Valve |
| Valve Operation | Manual |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| Pump Speed | Single-Speed |
| Pump Operation | Hand Operated |
| Oil Displacement - 2nd Stage | 0.25 in³/stroke |
| Gauge Included | No |
| ATEX Certified | No |
| Sealed Reservoir | No |
