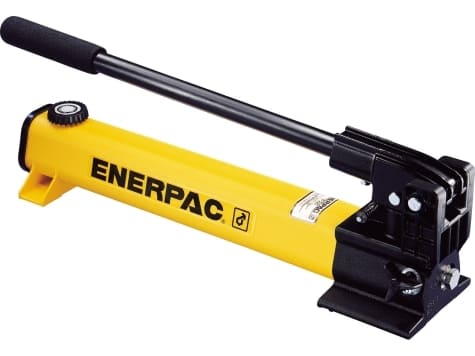

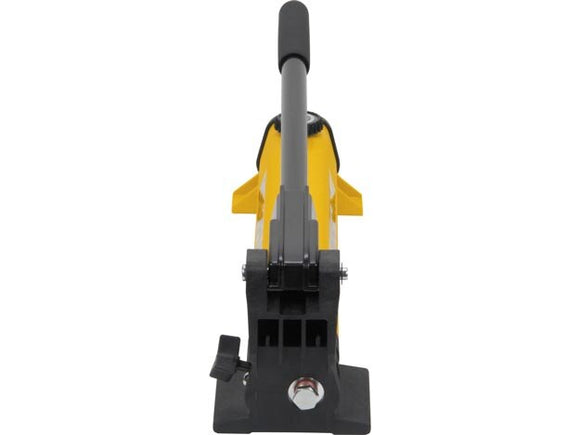

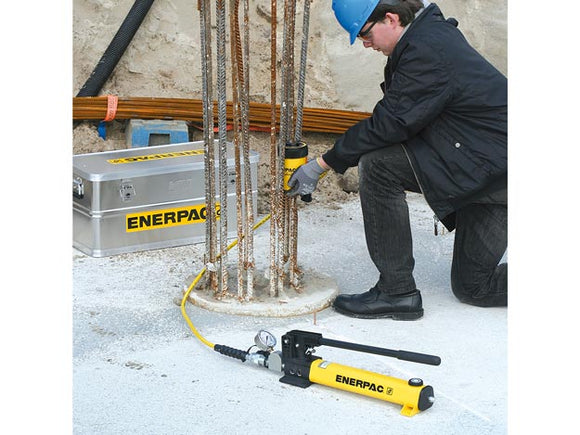

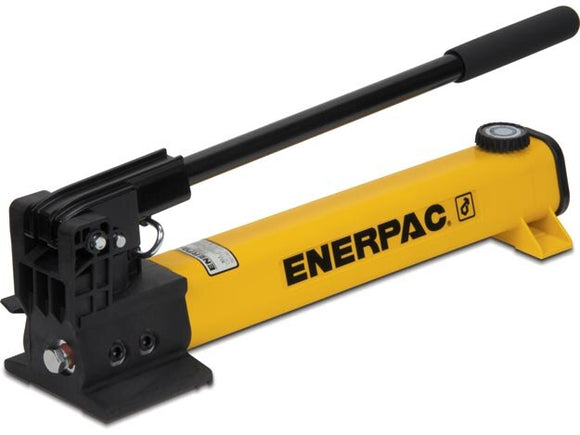

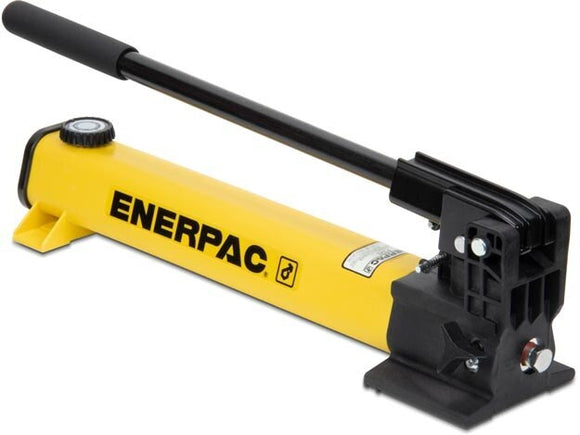

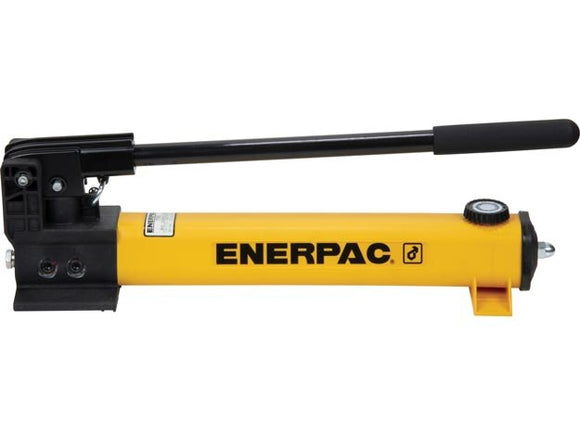

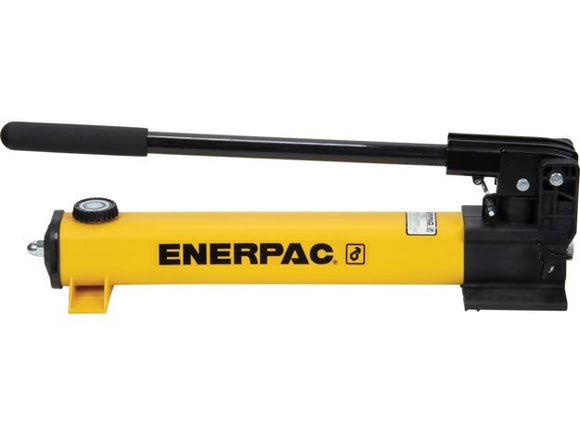

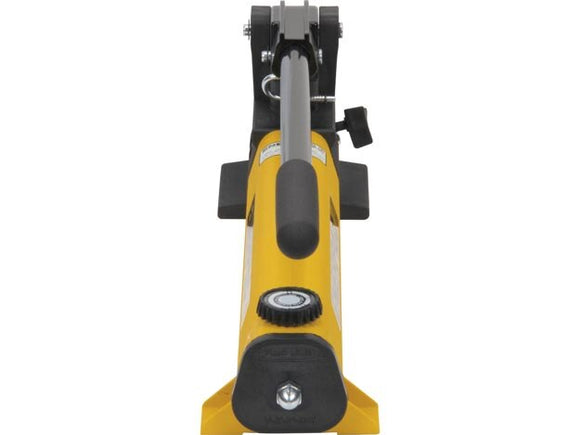

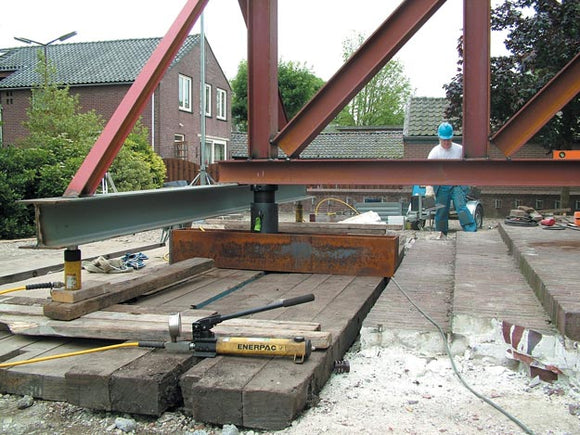

The Enerpac P392 is a lightweight, two-speed hydraulic hand pump rated to 10,000 psi, with 55 in³ of usable oil capacity. Its composite/aluminum construction suits portable setups using compatible single-acting cylinders.
Oil delivery is 0.687 in³ per handle stroke during low-pressure advance and 0.151 in³ per stroke in the high-pressure stage. The larger initial delivery advances the cylinder before substantial resistance develops.
Matching the pump to the circuit
Check the cylinder's oil requirement and allow for the hose and connected equipment when sizing the system. The P392 and P80 have the same maximum pressure rating, but the P80 supplies 134 in³ of usable oil for applications requiring more volume. Cylinder, hose and gauge are purchased separately.
For existing P392 pumps with C-prefix date codes, the source manufacturer service documentation identifies the P391K2 repair kit. Parts usage differs between the P391 and P392 models; confirm the complete model, date code and required components before ordering.
Specifications
| Power Source | Manual |
|---|---|
| Pump Series | P-Series Lightweight |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 55 in³ |
| Valve Configuration | Release Valve |
| Valve Operation | Manual |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| Pump Speed | Two-Speed |
| Pump Operation | Hand Operated |
| Pump Material | Composite / Aluminum |
| Oil Displacement - 1st Stage | 0.687 in³/stroke |
| Oil Displacement - 2nd Stage | 0.151 in³/stroke |
| Gauge Included | No |
| ATEX Certified | No |
| Sealed Reservoir | No |
| Usable Oil Capacity | 55 in³ |
