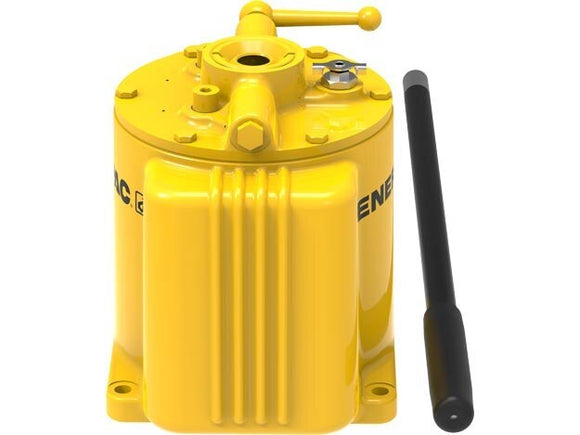

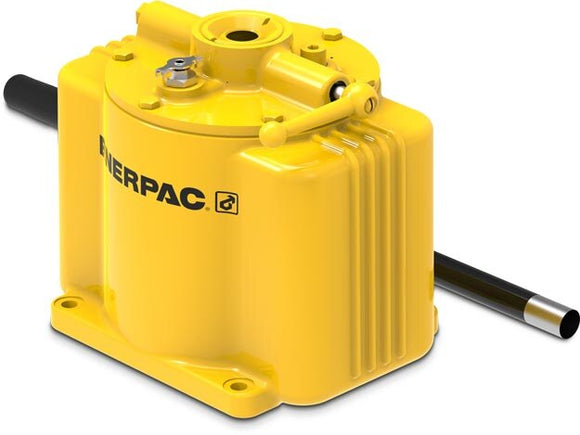

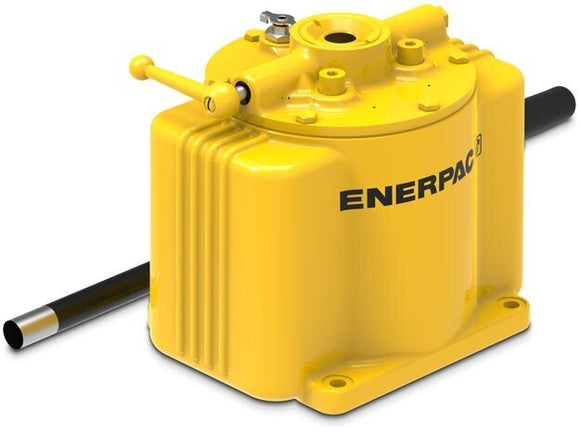

P25 is an Enerpac hydraulic hand pump. Pump configuration: Single Speed; cylinder circuit: Single-acting.
Manual hydraulic power is useful for occasional operation and jobs where an electric or compressed-air supply is inconvenient. Select the pump configuration for the cylinder circuit and the amount of oil it must move.
For this model
- Usable oil capacity: 200 in³
- Weight: 36 lb
The single-speed arrangement supplies the listed displacement on each stroke. Check the required oil volume and handle effort when planning repeated operation.
Before ordering
Check usable oil volume, single- or double-acting valve requirements and displacement per stroke. Match every hose and connection to the system pressure and required port arrangement.
Ask PLYET about P25. Include your equipment model and application details for selection help or a quote.
Specifications
| Power Source | Manual |
|---|---|
| Pump Series | P-Series Low Pressure |
| Maximum Operating Pressure | 2,500 psi |
| Reservoir Capacity | 200 in³ |
| Valve Configuration | Release Valve |
| Valve Operation | Manual |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| Pump Speed | Single-Speed |
| Pump Operation | Hand Operated |
| Oil Displacement - 2nd Stage | 0.58 in³/stroke |
| Gauge Included | No |
| ATEX Certified | No |
| Sealed Reservoir | No |
