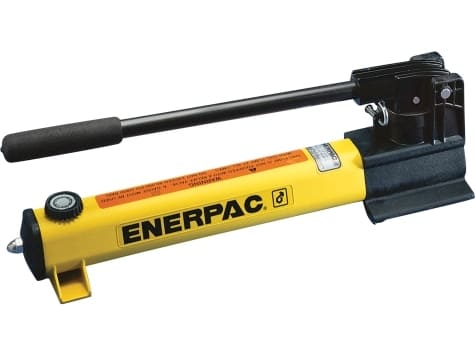

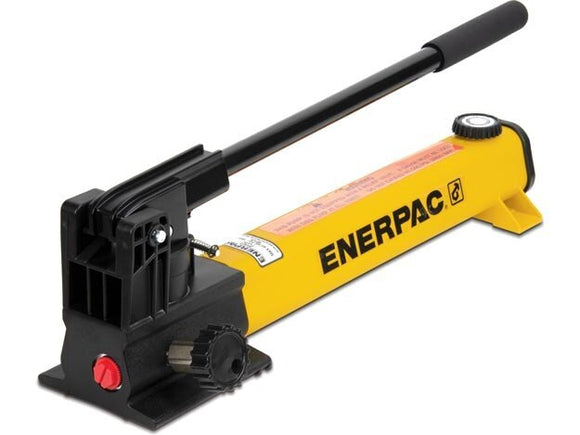

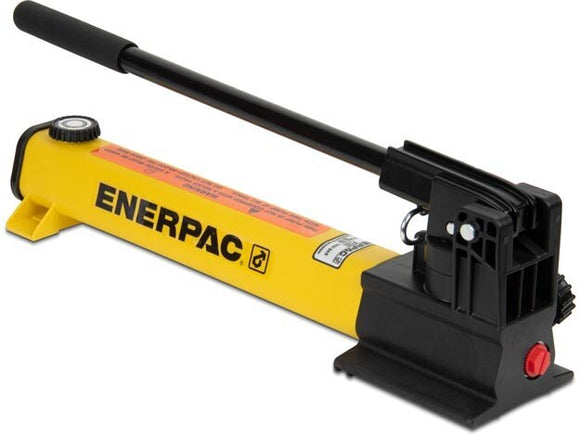

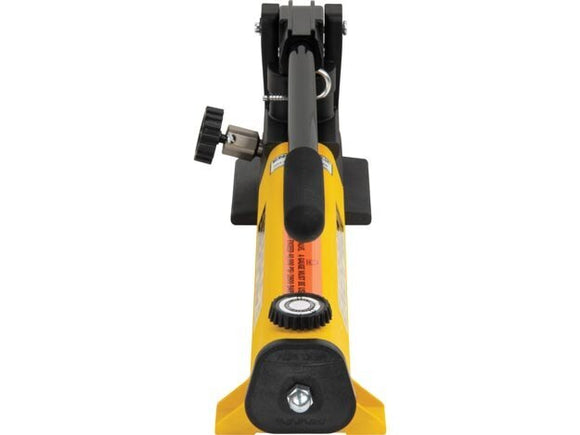

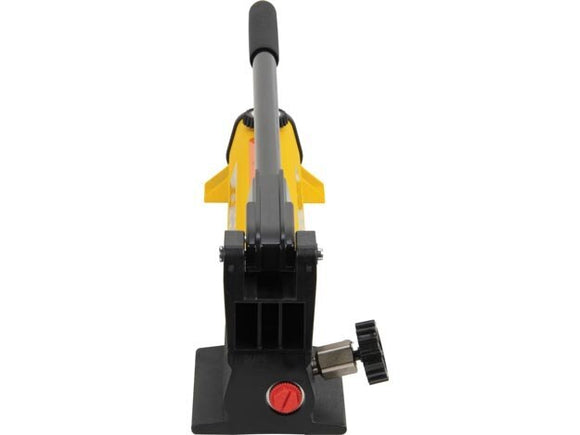

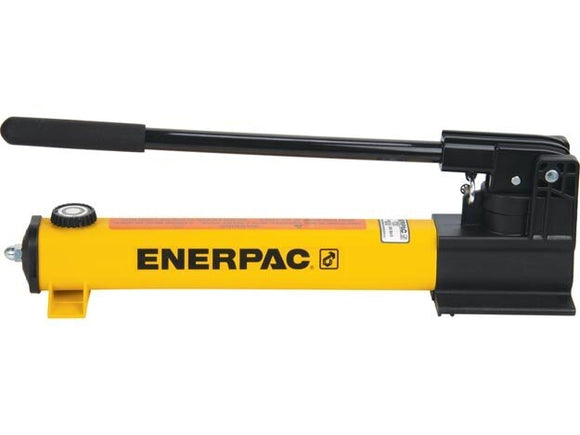

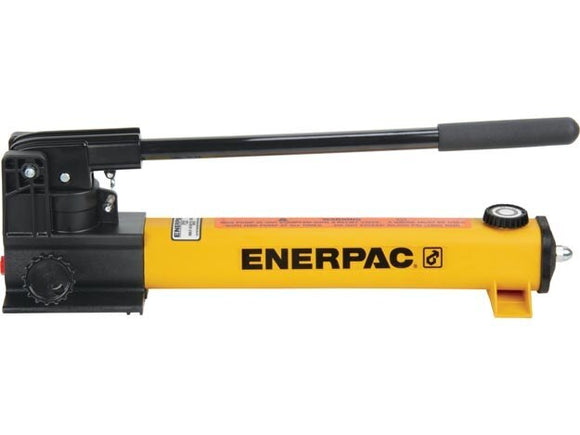

P2282 is an Enerpac hydraulic hand pump. Cylinder circuit: Single-acting; usable oil capacity: 60 in³. This ultra-high-pressure model is listed for operation up to 40,000 psi; the entire connected circuit must be suitable for that pressure.
Manual hydraulic power is useful for occasional operation and jobs where an electric or compressed-air supply is inconvenient. Select the pump configuration for the cylinder circuit and the amount of oil it must move.
For this model
- Weight: 14 lb
Before ordering
Check usable oil volume, single- or double-acting valve requirements and displacement per stroke. Match every hose and connection to the system pressure and required port arrangement.
Ask PLYET about P2282. Include your equipment model and application details for selection help or a quote.
Specifications
| Power Source | Manual |
|---|---|
| Pump Series | P/11 Series |
| Maximum Operating Pressure | 40,000 psi |
| Reservoir Capacity | 60 in³ |
| Valve Configuration | Release Valve |
| Valve Operation | Manual |
| Valve Function | Pressurize / Hold / Release |
| Pump Speed | Two-Speed |
| Pump Operation | Hand Operated |
| Oil Displacement - 1st Stage | 0.99 in³/stroke |
| Oil Displacement - 2nd Stage | 0.037 in³/stroke |
| Gauge Included | No |
| ATEX Certified | No |
