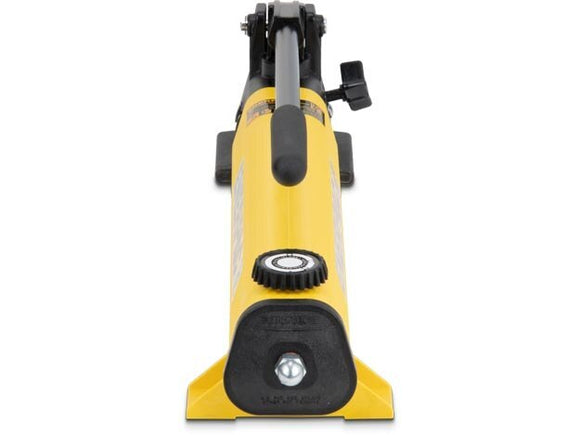

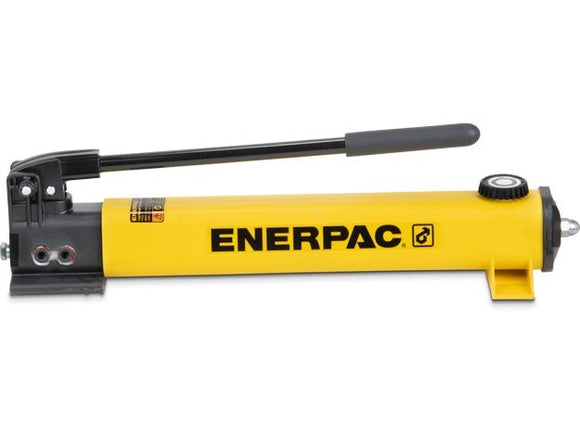

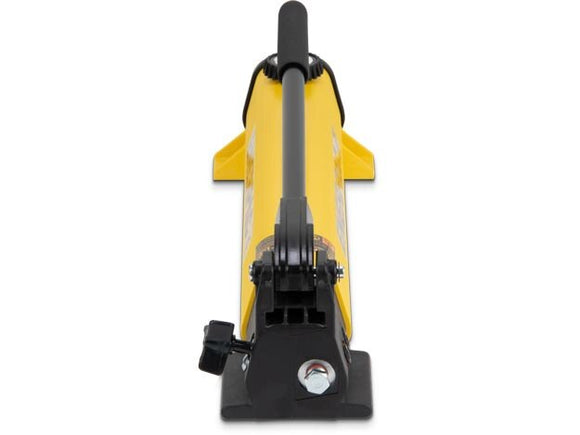

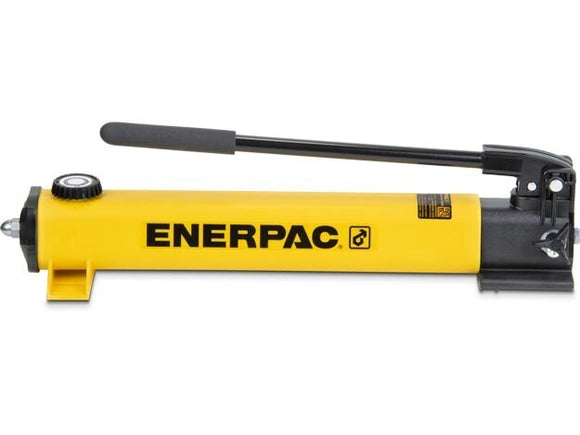

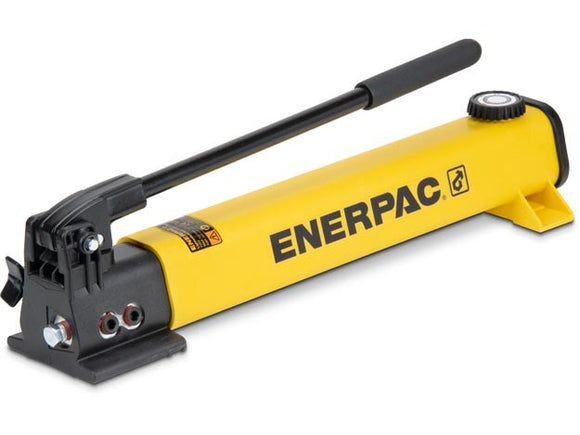

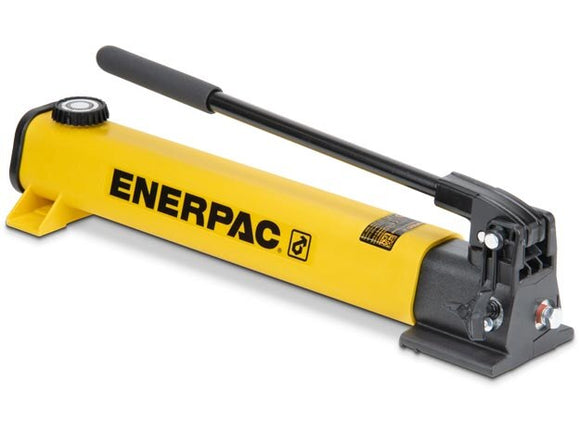

P202 is an Enerpac hydraulic hand pump. Pump configuration: Two Speed; cylinder circuit: Single-acting.
Manual hydraulic power is useful for occasional operation and jobs where an electric or compressed-air supply is inconvenient. Select the pump configuration for the cylinder circuit and the amount of oil it must move.
Selection reference
- Usable oil capacity: 55 in³
- Weight: 7.5 lb
The two-speed arrangement changes displacement as pressure rises. Compare high-pressure displacement per stroke when estimating manual effort and cycle time.
Before ordering
Check usable oil volume, single- or double-acting valve requirements and displacement per stroke. Match every hose and connection to the system pressure and required port arrangement.
Ask PLYET about P202. Include your equipment model and application details for selection help or a quote.
Specifications
| Power Source | Manual |
|---|---|
| Pump Series | P-Series Lightweight |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 55 in³ |
| Valve Configuration | Release Valve |
| Valve Operation | Manual |
| Valve Function | Advance / Hold / Retract |
| Cylinder Compatibility | Single-Acting |
| Pump Speed | Two-Speed |
| Pump Operation | Hand Operated |
| Pump Material | Composite / Aluminum |
| Oil Displacement - 1st Stage | 0.221 in³/stroke |
| Oil Displacement - 2nd Stage | 0.055 in³/stroke |
| Gauge Included | No |
| ATEX Certified | No |
| Sealed Reservoir | No |
