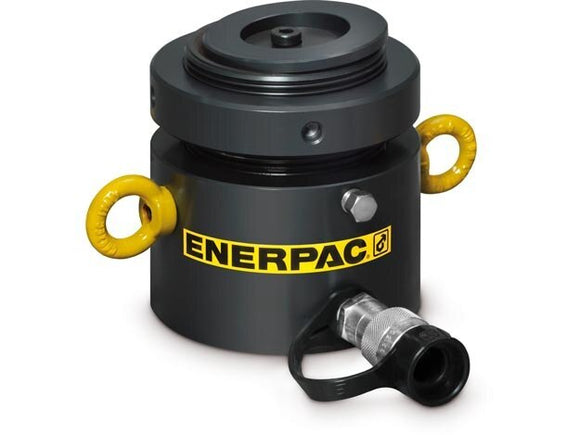

LPL 602 (LPL602) 68 Ton Cylinder from Enerpac is a professional-grade steel, hydraulic cylinder that is perfect for a variety of applications. With a maximum operating pressure of 10,000 PSI, this cylinder can handle even the most strenuous tasks. Additionally, the LPL 602 features a stroke of 1.97 inches and a collapsed height of 4.94 inches, making it perfectly sized for a variety of projects. And with its heavy-duty construction and precision-machined parts, the LPL602 is built to last. So if you're looking for a top-quality hydraulic cylinder, the LPL 602 (LPL602, LPL-602) from Enerpac is the perfect choice.
Model : LPL 602 Series 60 Ton Double Acting Cylinder:
- Lock nut provides mechanical load holding for a safe work environment
- Integrated tilt saddle allows for up to 5 degrees of misalignment
- Extreme low-height for use in confined areas
- 10% side-load resistance of maximum capacity
- Overflow port as stroke limiter to prevent plunger blow-out
- Single-acting, gravity-return
Specifications:
Maximum Operating Pressure (psi): 10,150
Capacity Class (tonnage): 60
Maximum Cylinder Capacity Advance (tons): 68
Stroke (in): 1.97
Collapsed Height A (in): 4.94
Extended Height B (in): 6.91
Return Type: Single-Acting, Load Return
Plunger Type: Solid
Material: Steel
Cylinder Effective Area Advance (in2): 13.42
Oil Capacity Advance (in3): 26.4
Sideload Resistance of Maximum Capacity (percentage): 0.1
Surface Treatment: Nitride
Coupler: CR400 Coupler
Weight (lbs): 33
