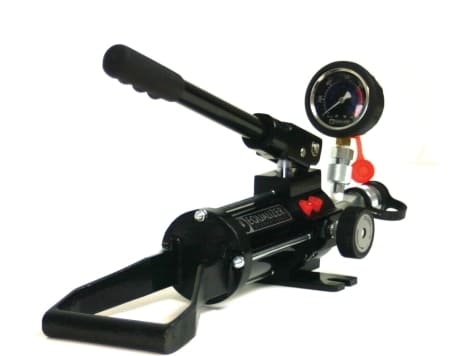

Hydraulic Single Port Sealed Hand Pump W/ Gauge
Model : HP550SMIN Series : HP – Hand Pump Product Lines : Industrial Tools Single Port hand pumps are used for actuating one single-acting cylinder. The HP550S hand pump has been designed with hazard reduction, safety and ease of use in mind. It can be used for operating any 10,000 psi (700 bar) rated hydraulic equipment with an oil capacity of 30.51in3 (550cc) or less and as with other Equalizer pumps it can be used in any orientation as well as on- or off-shore. The HP550SMIN Set Includes: 1 x HP550S Pump Unit 1 x 10,000 psi (700 bar) Gauge 1 x 3/8” Port Gauge Adaptor 1 x Instruction Manual 1 x Cardboard Packaging
Model : HP550SMIN Series : HP – Hand Pump Product Lines : Industrial Tools Single Port hand pumps are used for actuating one single-acting cylinder. The HP550S hand pump has been designed with hazard reduction, safety and ease of use in mind. It can be used for operating any 10,000 psi (700 bar) rated hydraulic equipment with an oil capacity of 30.51in3 (550cc) or less and as with other Equalizer pumps it can be used in any orientation as well as on- or off-shore. The HP550SMIN Set Includes: 1 x HP550S Pump Unit 1 x 10,000 psi (700 bar) Gauge 1 x 3/8” Port Gauge Adaptor 1 x Instruction Manual 1 x Cardboard Packaging
Specifications
| Power Source | Manual |
|---|---|
| Pump Series | HP Series |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 35.4 in³ |
| Cylinder Compatibility | Single-Acting |
| Pump Speed | Two-Speed |
| Pump Operation | Hand Operated |
| Oil Displacement - 1st Stage | 0.221 in³/stroke |
| Oil Displacement - 2nd Stage | 0.047 in³/stroke |
| Port Configuration | Single Port |
| Gauge Included | Yes |
| ATEX Certified | No |
| Sealed Reservoir | Yes |
