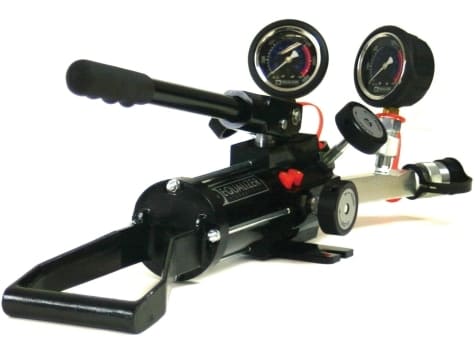

Hydraulic Twin Port Sealed Hand Pump w/ Gauge
Model : HP550DMIN Series : HP – Hand Pump Product Lines : Industrial Tools Twin Port hand pumps are used for actuating two single acting cylinders simultaneously. The two ports can be individually isolated or used together, enabling two tools to be controlled by a single user. The HP550D pump has been designed with hazard reduction, safety and ease of use in mind. It can be used for operating any 10,000 psi (700 bar) rated hydraulic equipment with an oil capacity of 30.51in3 (550cc) or less and as with other Equalizer pumps it can be used in any orientation as well as on- or off-shore. The HP550DMIN Set Includes: 1 x HP550D Pump Unit 2 x 10,000 psi (700 bar) Gauges 2 x 3/8” Port Gauge Adaptors 1 x Instruction Manual 1 x Cardboard Packaging
Model : HP550DMIN Series : HP – Hand Pump Product Lines : Industrial Tools Twin Port hand pumps are used for actuating two single acting cylinders simultaneously. The two ports can be individually isolated or used together, enabling two tools to be controlled by a single user. The HP550D pump has been designed with hazard reduction, safety and ease of use in mind. It can be used for operating any 10,000 psi (700 bar) rated hydraulic equipment with an oil capacity of 30.51in3 (550cc) or less and as with other Equalizer pumps it can be used in any orientation as well as on- or off-shore. The HP550DMIN Set Includes: 1 x HP550D Pump Unit 2 x 10,000 psi (700 bar) Gauges 2 x 3/8” Port Gauge Adaptors 1 x Instruction Manual 1 x Cardboard Packaging
Specifications
| Power Source | Manual |
|---|---|
| Pump Series | HP Series |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 35.4 in³ |
| Cylinder Compatibility | Single-Acting |
| Pump Speed | Two-Speed |
| Pump Operation | Hand Operated |
| Oil Displacement - 1st Stage | 0.221 in³/stroke |
| Oil Displacement - 2nd Stage | 0.047 in³/stroke |
| Port Configuration | Twin Port |
| Gauge Included | Yes |
| ATEX Certified | No |
| Sealed Reservoir | Yes |
