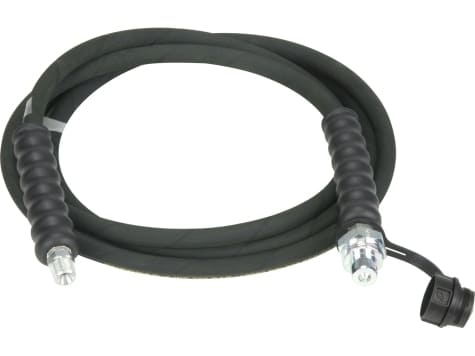

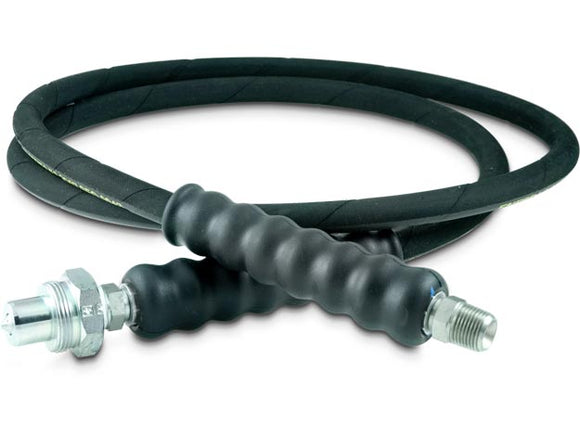

The Enerpac HC9206 is a 6-foot rubber hydraulic hose assembly rated to 10,000 psi, with a 0.25-inch internal diameter. It has a 3/8-inch NPTF male threaded connection at one end and a CH604 high-flow male coupler at the other.
The CH604 mates with a compatible CR400 female coupler. Confirm the coupling model on the connected equipment before ordering; appearance alone does not establish compatibility.
Hose bore, fittings and routing
The hose has two steel-wire braid reinforcement layers. Its 1/4-inch bore describes the internal fluid passage, while 3/8-inch NPTF identifies the threaded connection. Both specifications matter when matching a replacement hose.
Verify that the 6-foot length accommodates the intended routing without exceeding the manufacturer's bend limits or placing tension on the connections. Check the pressure rating of every connected component as part of the complete assembly.
Specifications
| Maximum Operating Pressure | 10,000 psi |
|---|---|
| Product Family | Hydraulic Hoses |
| Hose Length | 6 ft |
