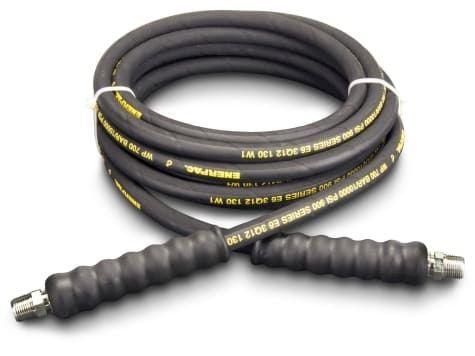

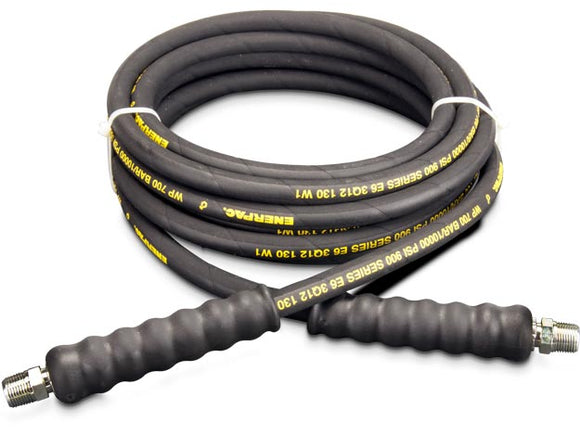

H9220 is an Enerpac high-pressure hydraulic hose. Hose length: 20 ft; hose inside diameter: 0.25 in.
Select hose length for the route between the pump and tool while allowing for movement and the specified bend radius. End connections must match the equipment at both ends.
For this model
- First end: 3/8" NPTF
- Second end: 3/8" NPTF
Before ordering
Check fitting type, working-pressure rating and the complete routing. Account for hose oil volume when checking pump capacity, especially on longer runs.
Ask PLYET about H9220. Include your equipment model and application details for selection help or a quote.
Specifications
| Maximum Operating Pressure | 10,000 psi |
|---|---|
| Product Family | Hydraulic Hoses |
| Hose Length | 20 ft |
| Hose End 1 | 3/8" NPTF |
| Hose End 2 | 3/8" NPTF |
| Hose Inside Diameter | 0.25 in |
| Weight | 8 lb |
