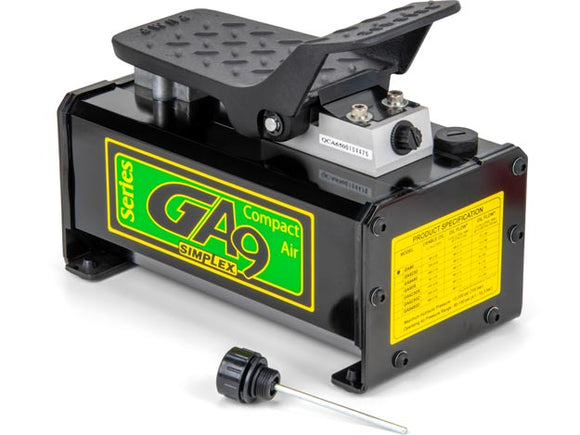

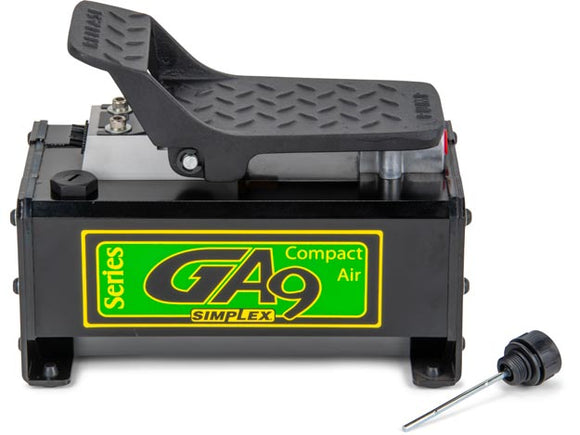

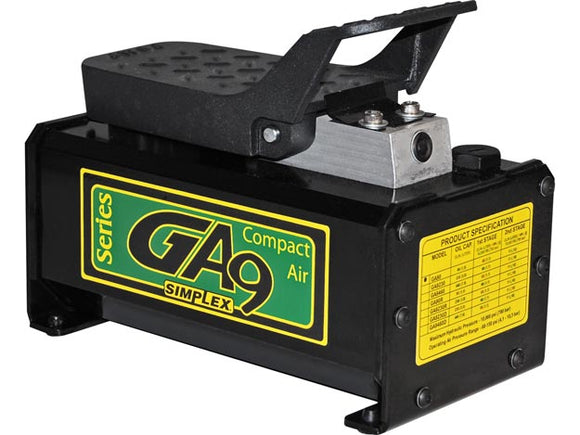

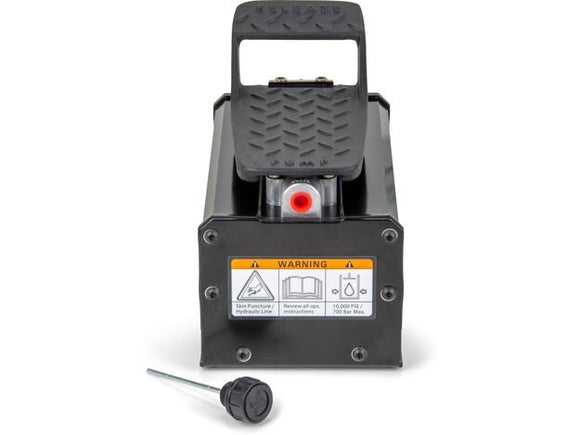

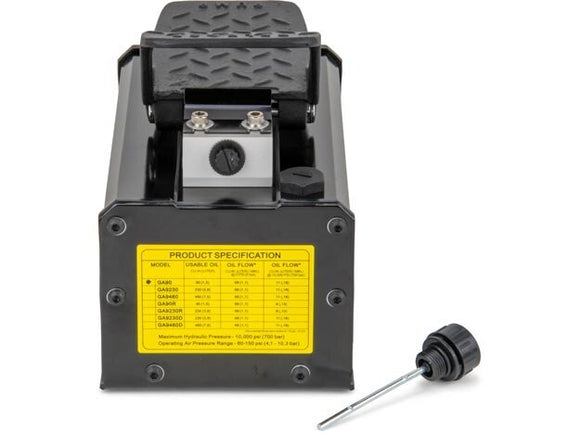

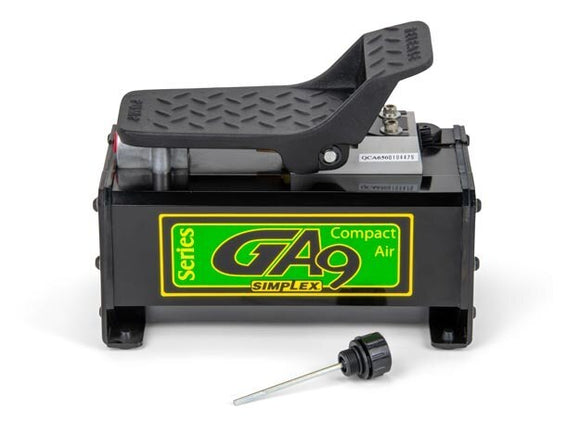

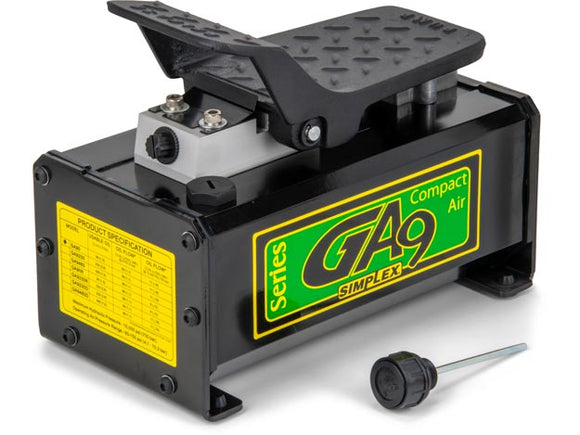

GA90 is a Simplex air-driven hydraulic foot pump for a single-acting circuit. The foot-pedal arrangement allows hydraulic operation while leaving the operator’s hands available for positioning.
Choose it by the cylinder’s usable oil requirement and the compressed-air supply available at the work area. The valve and return arrangement must match the connected tool.
Before ordering
- Confirm air pressure and delivery capacity against the pump requirements.
- Verify usable oil volume, connections and the advance-and-release control procedure.
Ask PLYET about GA90. Include the equipment model and application details for selection help or a quote.
Specifications
| Power Source | Air |
|---|---|
| Maximum Operating Pressure | 10,000 psi |
| Rated Oil Flow | 11 in³/min at 10,000 psi |
| Valve Operation | Manual |
| Cylinder Compatibility | Single-Acting |
| Control Type | Foot Pedal |
| Weight | 18.5 lb |
