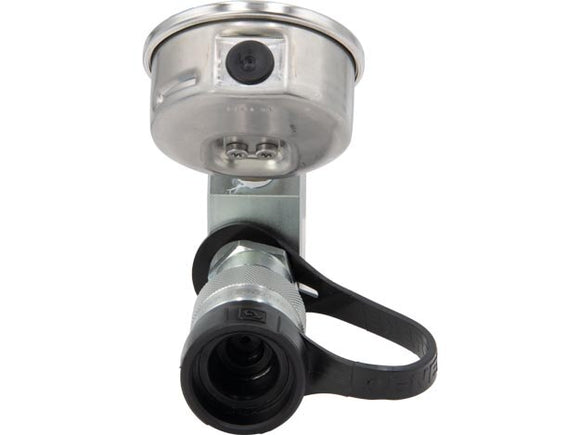

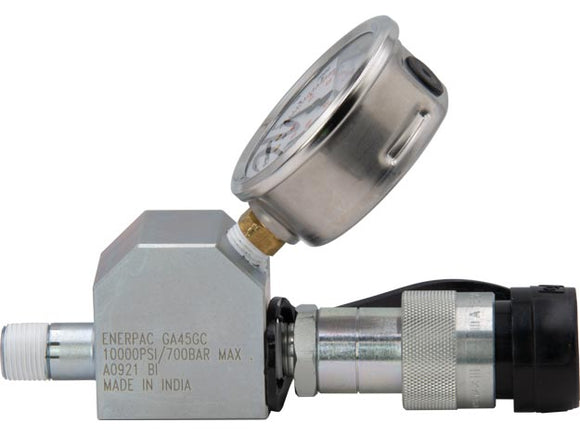

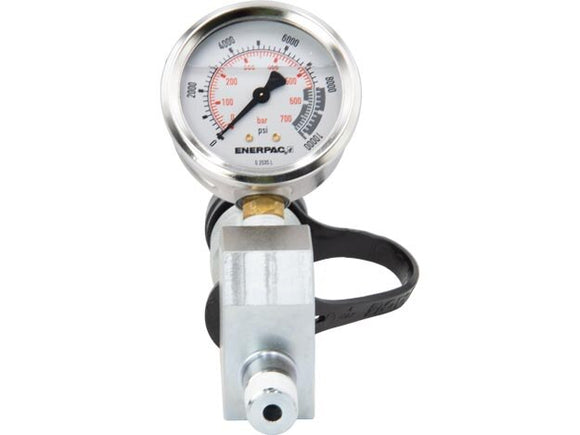

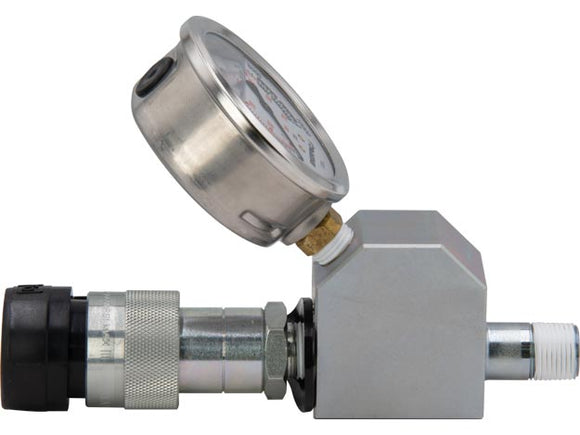

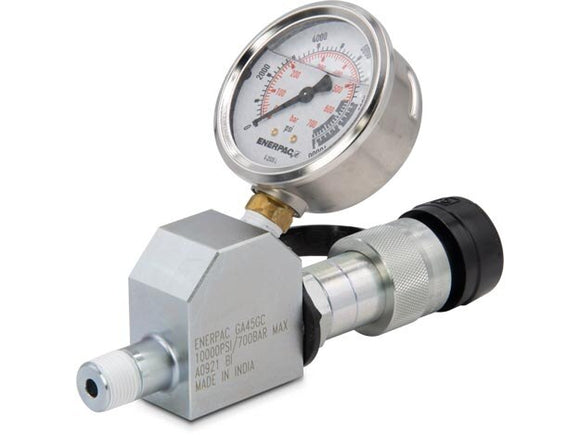

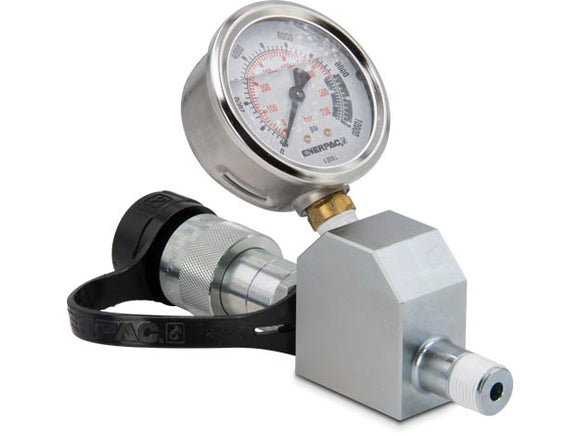

The Enerpac GA45GC combines a G2535L glycerin-filled pressure gauge, a 45-degree adapter and a CR400 high-flow female coupler. The dual-scale gauge reads 0–10,000 psi and 0–700 bar.
A 3/8-inch NPTF male connection threads into a matching hydraulic port. The angled adapter positions the gauge face for viewing, while the CR400 accepts a compatible high-flow male coupling.
Assembly contents and installation
The gauge, angled adapter and female coupler are included with GA45GC. This distinguishes the complete assembly from a bare gauge adapter.
Check the available clearance around the installed assembly, including the gauge face and coupling connection. Match the port thread, coupling series and pressure limits to the circuit.
The gauge indicates hydraulic pressure. Determining cylinder force from that reading also requires the cylinder's effective piston area.
Specifications
| Maximum Operating Pressure | 10,000 psi |
|---|---|
| Gauge Included | Yes |
| Included Components | 45-degree adapter; G2535L gauge; CR400 female coupler |
