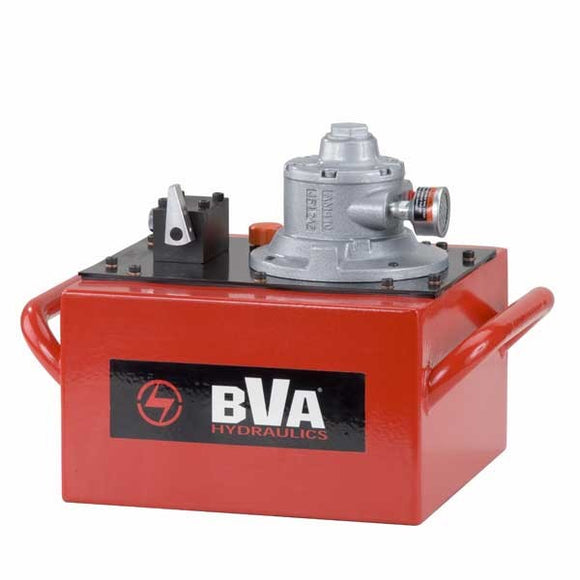

The PARD1703 BVA Hydraulics air-powered pump has a 3 gal reservoir.
Model configuration: rotary air pump 1.7 HP 3 gallon 2-way/2-position dump valve - 10,000 psi.
The specified pump configuration includes reservoir capacity: 3 gal; oil capacity: 693 in³; valve: Dump; valve configuration: 2-way/2-position; valve function: Advance/Return; motor power: 1.7 hp; oil outlet connection: 3/8"-18 NPTF.
Specifications
| Power Source | Compressed Air |
|---|---|
| Maximum Operating Pressure | 10,000 psi |
| Motor Power | 1.7 hp |
| Reservoir Capacity | 693 in³ |
| Valve Configuration | 2-Way, 2-Position |
| Valve Function | Advance / Retract |
| Cylinder Compatibility | Single-Acting |
| Pump Material | Steel |
| Air Pressure Range | 60–80 psi |
| Pump Type | Air Pump |
| Product Family | Air Hydraulic Pumps |
| Air Inlet Port | 1/2" NPT |
| Oil Outlet Port | 3/8"-18 NPTF |
| Reservoir Material | Steel |
| Weight | 87.1 lbs |
