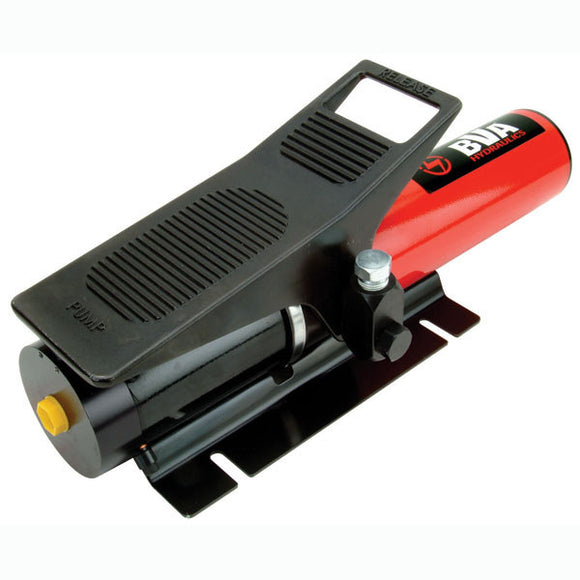

The PA600 BVA Hydraulics air hydraulic pump provides 36.6 in³ usable oil for single acting service. Its treadle control operates from a recommended 110–175 psi air supply.
A dual-stage release valve controls oil return, with a dust cover protecting the release bar. An internal pressure relief valve provides overload protection. BVA lists operation in horizontal and vertical positions.
Maximum hydraulic working pressure is 10,000 psi. Check the 1/4 in-18 NPTF air connection separately from the 3/8 in-18 NPTF hydraulic outlet when arranging the supply lines.
Specifications
| Power Source | Compressed Air |
|---|---|
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 36.6 in³ |
| Cylinder Compatibility | Single-Acting |
| Pump Material | Steel |
| Air Pressure Range | 110–175 psi |
| Pump Type | Air Pump |
| Product Family | Air Hydraulic Pumps |
| Air Inlet Port | 1/4"-18 NPTF |
| Oil Outlet Port | 3/8"-18 NPTF |
| Reservoir Material | Steel |
| Weight | 14.08 lbs |
