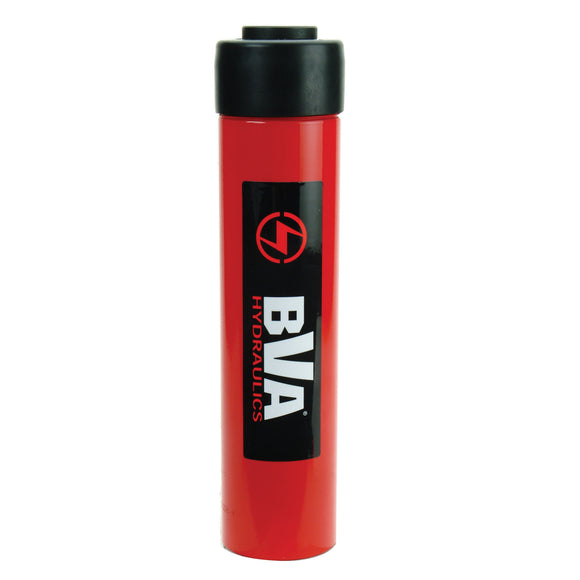

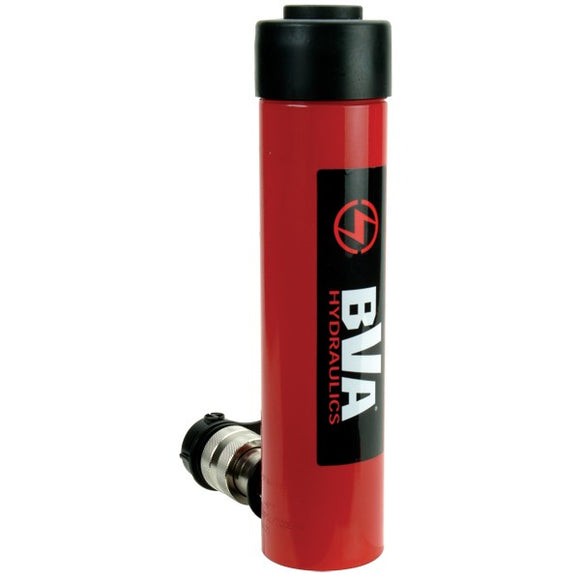

The H1006 BVA Hydraulics cylinder provides 10 ton capacity and 5.94 in of travel. A steel body, single acting operation and high flow coupler define this general-purpose hydraulic cylinder.
The specified stroke is slightly under six inches, a detail that matters when the full travel is required. Allow for a 9.84 in collapsed height and 15.78 in fully extended height. Internal plunger threads and collar threads provide the listed attachment interfaces.
Specifications
| Maximum Operating Pressure | 10,000 psi |
|---|---|
| Load Capacity | 10 Ton |
| Cylinder Stroke | 5.94 in |
| Cylinder Type | General Purpose Hydraulic Cylinders |
| Product Family | Hydraulic Cylinders |
| Cylinder Action | Single Acting |
| Cylinder Material | Steel |
| Collapsed Height | 9.84 in |
| Collar Thread | 2¼”-14 |
| Collar Thread Length | 1.18 |
| Cylinder Bore | 1.69 in |
| Extended Height | 15.78 in |
| Outside Diameter | 2.26 in |
| Pressure at Rated Capacity | 8928 psi |
| Rod Diameter | 1.49 in |
| Rod Internal Thread | 1”-8UNC |
| Rod Thread Length | 0.79 |
| Saddle Diameter | 1.38 in |
