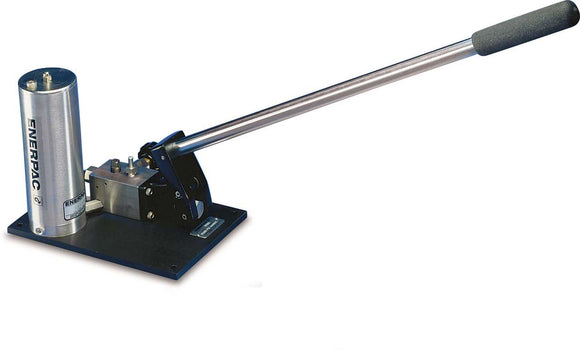

The Enerpac 11400 is a single-speed stainless steel hand pump for pressures up to 40,000 psi. It provides 45 in³ of usable oil and uses a large release knob for manual pressure release.
The outlet connection is specified as a 3/4-16 cone arrangement. This ultra-high-pressure connection and the pump’s fluid requirements must match the equipment being supplied; a standard 10,000 psi hydraulic component is not a substitute for a correctly rated component in this circuit.
Specifications
| Power Source | Manual |
|---|---|
| Pump Series | P/11 Series |
| Maximum Operating Pressure | 40,000 psi |
| Reservoir Capacity | 45 in³ |
| Valve Configuration | Release Valve |
| Valve Operation | Manual |
| Valve Function | Pressurize / Hold / Release |
| Pump Speed | Single-Speed |
| Pump Operation | Hand Operated |
| Pump Material | 303 Stainless Steel |
| Oil Displacement - 2nd Stage | 0.038 in³/stroke |
| Gauge Included | No |
| ATEX Certified | No |
| Multifluid Compatible | Yes |
