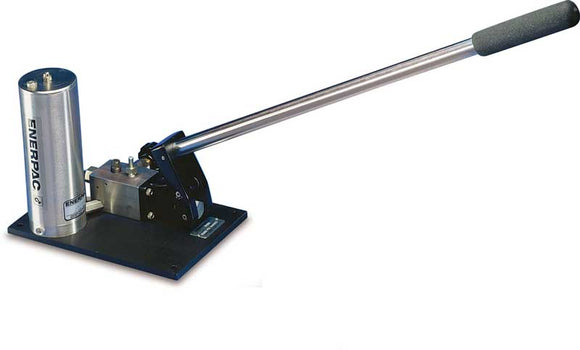

The Enerpac 11100 is a stainless steel hydraulic hand pump rated to 10,000 psi, with 45 in³ of usable oil capacity. Its single-acting circuit is operated manually, and a large release knob controls pressure release.
The 303 stainless steel construction supports the specified multifluid applications. Select the fluid against the pump’s seal and material requirements, then size the usable reservoir volume for the connected equipment. The hydraulic pressure rating and fluid compatibility are separate selection checks.
Specifications
| Power Source | Manual |
|---|---|
| Pump Series | P/11 Series |
| Maximum Operating Pressure | 10,000 psi |
| Reservoir Capacity | 45 in³ |
| Valve Configuration | Release Valve |
| Valve Operation | Manual |
| Valve Function | Pressurize / Hold / Release |
| Pump Speed | Single-Speed |
| Pump Operation | Hand Operated |
| Pump Material | 303 Stainless Steel |
| Oil Displacement - 2nd Stage | 0.152 in³/stroke |
| Gauge Included | No |
| ATEX Certified | No |
| Multifluid Compatible | Yes |
