Use this component hub to find the connections, controls and accessories required around a hydraulic power unit or tool. Product listings cover different functions and operating limits, so start with the component's role in the circuit.
Build the circuit around the required operation
A component list should describe how oil is supplied, directed, measured and returned. Start with the cylinder or tool, then establish the role of each connection and control. Selecting every item for the same headline pressure does not establish a complete working circuit.
| Circuit role | Category | Information that drives selection |
|---|---|---|

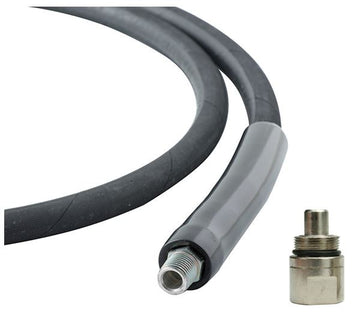

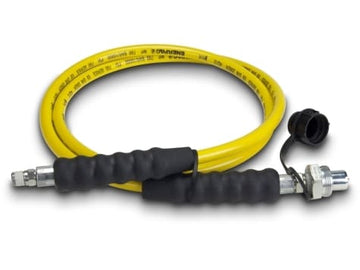

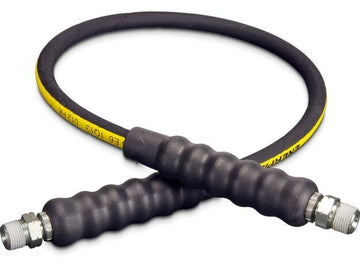

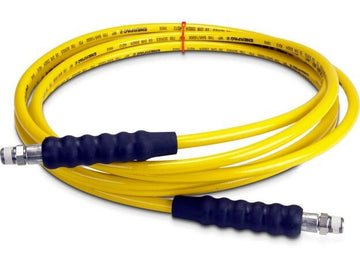

| Carry oil between equipment | Hoses | Assembly rating, routing, length and specified connections |

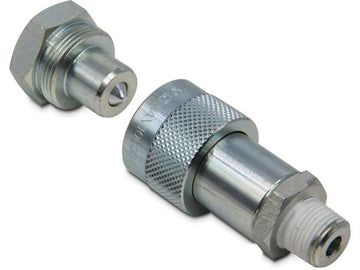

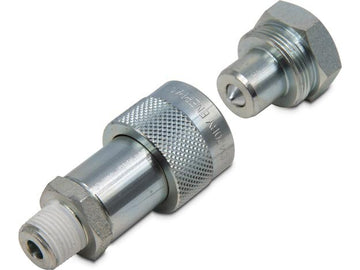

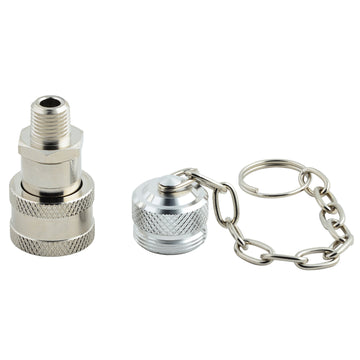

| Make a detachable connection | Couplers | Matched coupling family, flow and intended operating arrangement |
| Change connection or direction | Fittings | Thread system, geometry, fluid and pressure limits |

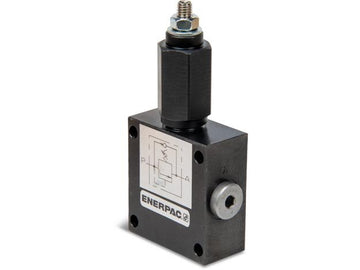

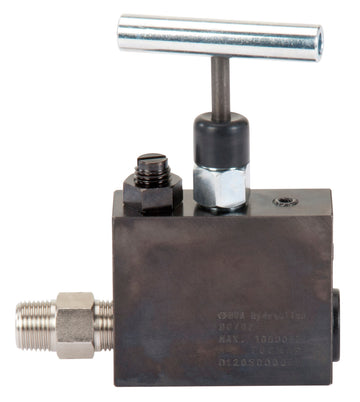

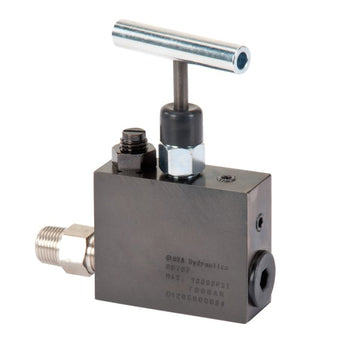

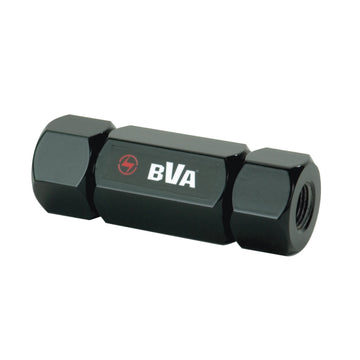

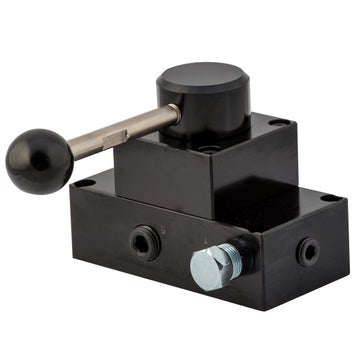

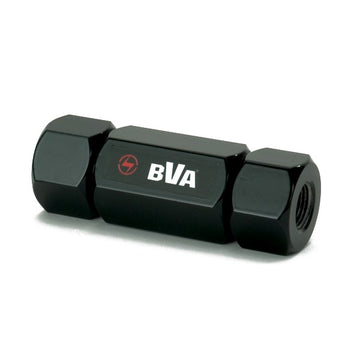

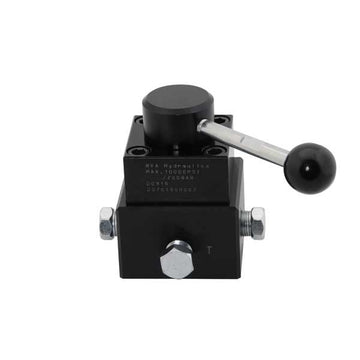

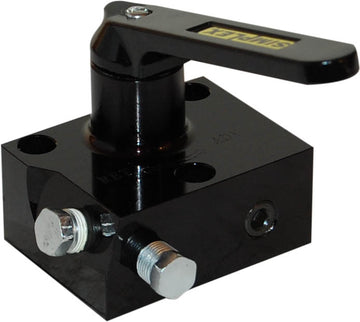

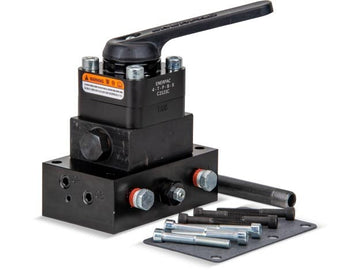

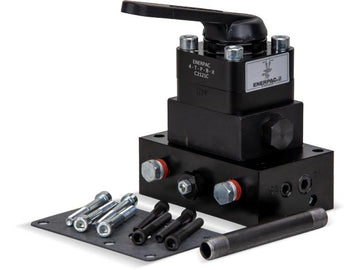

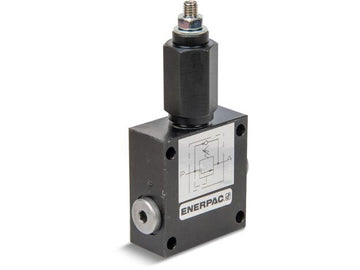

| Direct or control oil | Control valves | Circuit function, flow, mounting and neutral behavior |

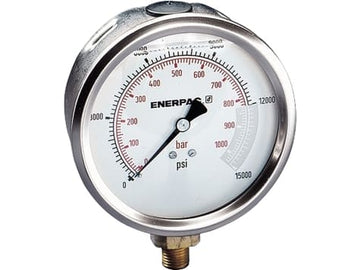

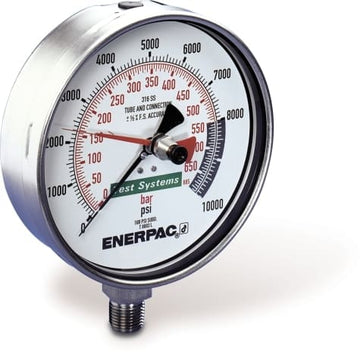

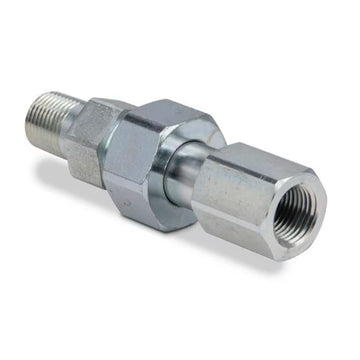

| Observe operating pressure | Gauges | Range, scale, location and connection |

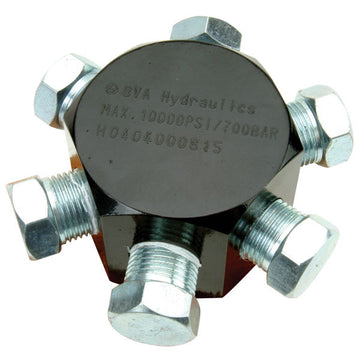

| Connect several circuit branches | Manifolds | Port arrangement and the required branch control |
Keep a schematic with the bill of materials
For a new fixture or a modified maintenance system, a simple circuit drawing makes the shopping list more reliable. Show the power unit, control functions, tool ports and return paths. Mark pressure limits and the manufacturer's specified connection arrangement so that a later replacement order can be checked against the same design.
In a multi-cylinder application, a manifold can distribute oil without providing synchronized motion. Where equal travel or a defined sequence matters, that requirement must be addressed by the control system rather than assumed from a shared supply.
Pressure indication depends on where the gauge connects
A gauge at the pump reports pressure at that connection point. Restrictions, valves and trapped portions of a circuit can create conditions elsewhere that the same reading does not fully describe. Identify what needs to be measured and place instrumentation according to the circuit design.
For troubleshooting, keep the schematic and component references with the reported symptom. “The gauge reaches pressure but the tool does not move” is not enough to identify a failed part without knowing the valve states, measurement location and equipment arrangement. An accurate circuit record supports both purchasing and a more useful service assessment.
Can adding a relief valve raise the rating of a lower-rated component?
No. A control or protective device does not upgrade another component's rating. The complete design must keep every item within its permitted conditions.
Are components from different brands interchangeable if the threads match?
No compatibility is established that way. Use the manufacturer's documented system arrangement and approved components; dimensions and pressure labels alone are insufficient.
Can I select a valve after choosing all the hoses?
The valve function and circuit layout should be established first. They determine the number and role of connections rather than simply fitting an existing hose count.
What information helps with a component-list review?
Provide the equipment models, required sequence, operating pressure, flow, fluid and a circuit sketch. Include existing component references when modifying a known installation.
