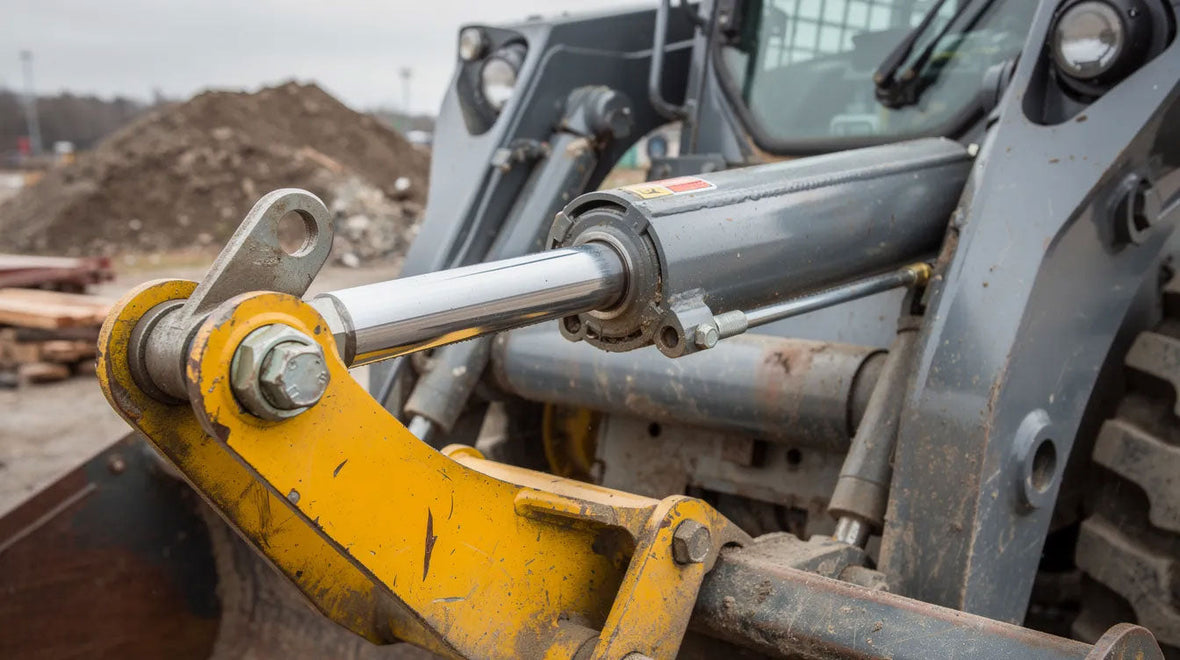

How To Measure Hydraulic Cylinder: A Practical Guide

Key Takeaways

• The five core measurements you need are bore (piston diameter), rod diameter, stroke length, retracted length, and extended length—all measured in inches for U.S. equipment compatibility.
• All measurements in this guide use American standard units (inches and PSI) to match common hydraulic specifications on farm equipment, construction machinery, and industrial applications.
• Proper measuring ensures your replacement cylinder from PLYET Industrial Supply will bolt in correctly, match stroke requirements, safely handle your hydraulic system’s working pressure, and that the outer dimensions will fit within your machinery frame and be compatible with the required mounting styles.
• Basic tools like a tape measure and calipers are all you need for most measurements, and PLYET can help validate your dimensions before you place an order.
• Taking photos of your cylinder alongside your measurements makes it easier for PLYET’s team to confirm specs and catch potential issues before shipping.

Introduction: Why Accurate Hydraulic Cylinder Measurement Matters

Picture this: it is 2026, and your loader is sitting dead on the job site with a bent cylinder rod and hydraulic fluid pooling underneath. The pressure is on to get that machine earning again, but ordering the wrong replacement cylinder means more downtime, return shipping hassles, and a frustrated crew waiting around. That scenario plays out more often than you might think, and it almost always traces back to one problem—inaccurate measurements.

Hydraulic cylinders on equipment like compact tractors, skid steers, log splitters, hydraulic presses, and hydraulic jacks are not interchangeable off-the-shelf parts. Even cylinders that look similar can have different bore sizes, rod diameters, stroke lengths, and mounting configurations. PLYET Industrial Supply uses clear, repeatable measurements to match or spec cylinders, whether you need a standard replacement cylinder or a custom-assembled unit from our component inventory.

Getting the bore diameter or rod diameter wrong changes how much force the cylinder produces and how well the piston rod resists buckling under load. Measuring the wrong stroke length or retracted length can prevent the machine from reaching full travel distance or even cause mechanical damage when the cylinder bottoms out against frame allowances. This article walks through each measurement in a step-by-step process using plain English and simple inch-based examples, so whether you are a DIY owner or a seasoned maintenance pro, you can properly measure a hydraulic cylinder and get your machine back up and running.

Identify Your Hydraulic Cylinder Type Before Measuring

Before you grab your tools needed for measuring, take a minute to identify what type of cylinder you are working with. Knowing the construction and action style makes the later measurements easier and helps when you call PLYET for support.

Common Cylinder Constructions

PLYET sees several cylinder constructions regularly:

Welded cylinders

The most common type on mobile equipment like log splitters, compact tractors, and skid steer attachments. The end caps are welded directly to the cylinder tubing, creating a compact, durable unit without external fasteners.

Tie rod cylinders

Prevalent on industrial hydraulic presses, automation equipment, and stationary machinery. Threaded rods and nuts compress the barrel segments together, allowing easier disassembly for gland and seal replacement. You can often measure the inside barrel diameter more precisely on these because you can separate the components.

Mill-duty cylinders

Built for extreme industrial environments like steel mills and heavy presses. These feature heavy tubing walls, bolted flanges, and circumferential bolts rated for hundreds of thousands of cycles.

Single-Acting vs. Double-Acting

A single-acting cylinder uses hydraulic pressure in one direction only—typically to extend—and relies on gravity, a spring, or external load to retract. You will find these on dump trailers and certain lifting applications. A double-acting cylinder uses hydraulic pressure to both extend and retract, giving you controlled force in either direction. Most loaders, tilts, grapples, and log splitters from 2020 and newer use double-acting designs.

The easiest way to tell the difference is by counting hydraulic lines. One hose port means single-acting; two hose ports mean double-acting.

Single-Rod vs. Double-Rod

Most cylinders are single-rod designs where the piston rod extends from one end only. Double-rod cylinders have a shaft protruding from both ends, providing equal force in both directions. These show up in steering cylinders, certain clamping fixtures, and specialized positioning equipment.

Real-world example: A log splitter manufactured around 2020 almost always uses a double-acting cylinder in a welded, single-rod configuration. The bore typically falls between 2 and 4 inches, the stroke runs 8 to 24 inches, and the cylinder hose ports are usually SAE O-ring boss fittings on the end cap.

When you contact PLYET, snapping a quick photo of the cylinder and the surrounding mount area helps our team confirm the configuration before you start measuring.

Tools and Safety Prep for Measuring a Hydraulic Cylinder

Safety comes first whenever you work around hydraulic equipment. Before touching the cylinder, depressurize the hydraulic system completely, shut the machine off, and, on shop equipment, follow proper lockout/tagout procedures. Hydraulic systems store tremendous energy, and a pressurized cylinder can move unexpectedly with enough force to cause serious injury.

Personal Protective Equipment

Safety glasses to protect your eyes from residual fluid spray or metal debris
Oil-resistant gloves for handling greasy or sharp metal edges
Steel-toe boots if you are working with large, heavy cylinders that could slip during removal

Basic Measuring Tools

You do not need an elaborate setup. Here are the right tools for most jobs:

Tool	Purpose
Tape measure (inches, 1/16 in graduations)	Overall lengths, stroke estimation
Digital or dial calipers (0–6 in range, 0.001 in resolution)	Bore estimation, rod measurement, pin diameter
Small steel ruler	Quick reference checks
Thread pitch gauge (optional)	Identifying port and rod-end thread type



For most farm and construction equipment manufactured after about 1990, dimensions are in inches. Common bore sizes include 1.50, 1.75, 2.00, 2.50, 3.00, and 3.50 inches. Rod diameters typically run 0.75, 1.00, 1.25, 1.50, and 2.00 inches in standard increments.

Keep a dedicated notepad or print a worksheet where you can write each measurement clearly with labels like “BORE,” “ROD,” “RETRACTED,” and “EXTENDED.” Taking phone photos of your tape or calipers in place on the cylinder helps when sharing info with PLYET for double-checking.

Step-by-Step: Core Hydraulic Cylinder Measurements

This section covers the five primary dimension categories PLYET needs almost every time you call or submit a quote request: bore, rod diameter, stroke, retracted length, and extended length. Accurate, correct measurements here mean your new cylinder will fit, perform, and last.

Step 1: Measure the Bore (Piston Diameter)

The bore is the inside diameter of the cylinder barrel—also referred to as piston diameter or actual piston diameter. This measurement directly determines how much force the cylinder generates at a given PSI. The formula is straightforward: Force = Pressure × Piston Area. A larger bore size produces more force at the same system pressure.

How to measure:

• Disassembled cylinder: Use calipers to measure either the inside diameter of the barrel or the outside diameter of the piston inside the barrel. Record in inches to two decimal places (for example, 2.50 in bore, not “about two and a half”).
• Assembled cylinder: Measure the barrel diameter (outside diameter of the cylinder tubing) with calipers, then subtract the estimated wall thickness on each side. For welded cylinders under 4,000 PSI, wall thickness typically runs 0.22 to 0.37 inches. If you measure a 3.00 in outer diameter and estimate walls at 0.25 in per side, your bore is approximately 2.50 in.

Example: If your measurement comes out to roughly 2.49 in, that is almost certainly a 2.50 in nominal bore commonly used on compact tractor loaders and mid-size equipment.

Write “BORE = 2.50 in” on your notes. Measure as close to the center of the barrel as possible, away from weld beads or end fittings, where distortion might skew your reading.

Step 2: Measure the Rod Diameter

The cylinder rod is the shiny, chrome-plated shaft that slides in and out of the barrel. Correct rod measurement helps ensure the rod resists bending and buckling under load. An undersized rod on a high-force application can fail catastrophically.

How to measure:

• Use calipers on a clean section of the rod, away from rust, scoring, or damage near the end
• Record the value in inches to two decimal places (for example, 1.25 in or 1.50 in)
• If the rod end is nicked or mushroomed, move a few inches back along the rod to find an unaffected diameter

Most off-road and agricultural cylinders use rod diameters in standard increments: 0.75 in, 1.00 in, 1.25 in, 1.50 in, and 2.00 in. If your measurement lands near one of these, that is likely the nominal size.

Example: A 3.00 in bore bucket cylinder on a mid-size skid steer commonly uses a 1.50 in rod diameter, providing ample margin against buckling for typical working pressures.

Step 3: Measure Retracted Length

Retracted length is the cylinder’s overall length when fully retracted, measured between two consistent reference points tied to how the cylinder mounts. Most manufacturers specify pin center to pin center dimensions—center of the base pin holes to center of the rod-end pin holes.

How to measure:

1. Fully retract the cylinder (ensure system is depressurized first)
2. Identify your reference points—typically pin center to pin center.
3. Measure with a tape measure and record in inches (for example, 24.75 in)
4. If the cylinder is still installed, you may be able to measure along the outside from mount point to mount point as long as the cylinder is in its fully retracted position.

Label your notes clearly: “RETRACTED = 24.75 in pin to pin” so PLYET knows exactly what reference points you used. Many original equipment manufacturer drawings use this same pin-to-pin spec, making drop-in matching much easier.

Step 4: Measure Extended Length

The extended length is the same reference measurement (pin center to pin center or your chosen fixed location) when the cylinder is fully extended.

How to measure:

• If the machine is operational, carefully extend the cylinder fully using hydraulic controls after confirming a safe work area, then shut the machine off and relieve residual pressure before measuring.
• For non-functional cylinders, removal may be required so the rod travels out to full length, and you can measure on a bench from mount to mount.
• Record the measurement in inches (for example, 36.75 in)

Example: If the retracted pin-to-pin is 24.75 in and the extended pin-to-pin is 36.75 in, those are the two primary dimension numbers PLYET needs.

Use the exact same reference points for both retracted and extended measurements. Mixing reference points is a common source of ordering errors.

Step 5: Calculate Stroke Length

Stroke length is simply the travel distance the rod moves, calculated as extended length minus retracted length. This tells you how far the cylinder can push or pull.

Calculation:

• Extended (36.75 in) minus Retracted (24.75 in) equals Stroke (12.00 in)

Most manufacturers describe cylinders by bore × stroke—for example, “2.5 in × 12 in double acting welded cylinder.” Having this number makes it easier for PLYET to match a replacement quickly.

Stroke must be correct so the machine reaches full dump, lift, tilt, or clamp positions without bottoming out or failing to reach its designed travel. Write “STROKE = 12.00 in (36.75 – 24.75)” in your notes so any future tech or purchaser can see how the number was derived.

Key Mounting, Rod End, and Port Details You Also Need

Core dimensions alone are not enough to guarantee a drop-in fit. How and where the cylinder bolts on and connects to hydraulic lines must also match. PLYET frequently helps customers who have the correct bore and stroke but overlooked a clevis width, pin diameter, or port thread style—forcing returns or rework.

Think of these details like the bolt pattern on a wheel. Get them wrong, and it simply will not fit.

Measure Mounting Style and Critical Dimensions

PLYET sees several mount types when customers send photos:

• Cross-tube ends – A tube welded to the cylinder end accepts a pin that passes through
• Clevis mounts – Forked ears that accept a pin; measure the width between the ears and the pin diameter
• Tang ends – A flat plate with a hole for a pin
• Flange mounts – Bolted connection plates for rigid mounting
• Trunnion mounts – Pivot pins mounted to the cylinder body, allowing swivel motion

What to measure:

Dimension	How to Measure
Pin diameter	Calipers across the pin (e.g., 1.00 in, 1.25 in)
Clevis width	Distance between clevis ears in inches
Pin center to cylinder face	Distance from pin hole center to nearest cylinder body surface
Overall mount-to-mount limit	Maximum space available if frame allowances are tight



Example: A loader lift cylinder on a 2005 compact tractor might use a 1.25 in pin at the base clevis and a 1.00 in pin at the rod-end cross tube.

Even a 1/16 in difference in clevis width can cause binding. Write “PIN DIA = 1.00 in, CLEVIS WIDTH = 1.50 in” instead of vague notes like “looks like an inch.”

Identify Rod End Thread or Attachment Style

Many cylinders use a threaded rod end—either male hose crimp style with external threads or female ports style with an internal threaded hole—that accepts an eye, clevis, or spherical bearing. Matching this thread is vital if your existing hardware will be reused.

How to identify:

• Note whether you see external threads (male) sticking out of the rod or an internal threaded hole (female)
• Measure the major diameter of the thread in inches using calipers (common sizes: 0.75 in, 1.00 in, 1.25 in)
• Note the thread length if relevant

If you have a thread gauge, you can determine the exact thread specification (for example, 1-14 UNF). If not, PLYET’s team can often confirm from diameter measurements and photos. Many U.S. cylinders use national pipe thread or UNF threads.

Add notes like “ROD END: 1.00 in male thread, approx. 1.5 in long, with clevis screwed on” so PLYET can recommend compatible ends or complete rod assemblies. If the cylinder requires male hose crimps or a specific thread type, this information prevents compatibility issues.

Measure and Identify Hydraulic Port Size and Type

The hydraulic port is where the existing hydraulic hose ports or tubes connect. Matching port size and sealing style helps avoid leaks and eliminates the need for adapters.

What to check:

• How many ports does the cylinder have? (One = single acting; two = double acting)
• Where are the ports located? (Side, end cap, 90-degree orientation)
• What is the port size? Measure the hex size of the fitting and estimate the thread outside diameter in inches (common: 1/4 in, 3/8 in, 1/2 in, 3/4 in)

Common U.S. thread styles:

Style	Description
SAE O ring boss (ORB)	Straight thread with an O-ring seal at the face; very common on mobile equipment
NPT (National Pipe Thread)	Tapered thread that seals with interference and thread sealant
JIC (Joint Industry Council)	37-degree flare fitting, common on industrial hydraulics

Take a close-up photo of the port and send it to PLYET if you are unsure. Using either the inside diameter of the port or the outside diameter of existing fittings, our team can identify the same thread type and recommend the correct replacement or adapters.

Consider Working Pressure and Operating Environment

Matching the hydraulic cylinder’s working pressure and environmental durability to your original cylinder is essential for long-term reliability and safety. The hydraulic cylinder's working pressure is a key parameter influenced by the specific application, hydraulic system, and pump capabilities. It is important to consult manufacturer manuals and identify typical pressure ranges for different types of industrial and heavy-duty applications. A cylinder rated below your system’s maximum pressure can fail under load, while one built for a different environment may develop seal leaks or corrosion prematurely.

Typical Working Pressures

Application	Typical Working Pressure
Farm and compact construction equipment	2,500–3,000 PSI
Industrial hydraulic presses	3,000–5,000 PSI
Heavy excavators and forestry equipment	4,500–7,000 PSI



Check the machine’s hydraulic system plate, pump data tag, or operator’s manual to find the system pressure rating. Any cylinder you purchase from PLYET should meet or exceed that pressure rating with an appropriate safety margin—typically 1.5 to 2.5 times the normal operating pressure.

Environmental Factors

Where and how your equipment operates affects cylinder longevity:

• Outdoor log splitters living in rain and snow benefit from a chrome rod thickness of 0.0005 to 0.001 inches for corrosion resistance.
• Dusty construction sites require robust wiper seals to keep contamination out of the cylinder barrel.

• Food processing plants with frequent wash-downs may need stainless steel components or special coatings.
• High-temperature applications (near or above 180°F) call for polyurethane or Viton seals instead of standard nitrile.

Share how and where your equipment runs when you talk to PLYET. We can recommend cylinders and seal options tuned to your real-world conditions, not just catalog defaults. Choosing the right specs upfront extends service life and reduces unplanned downtime.

Double-Checking Your Measurements and Working with PLYET Industrial Supply

Even experienced mechanics occasionally misread a tape by 1/8 inch, and that small error can mean a cylinder that does not quite fit. A quick review before ordering saves days of downtime and the hassle of returns.

Quick Verification Checklist

• Confirm bore and rod diameter readings in inches
• Verify retracted and extended lengths using the same reference points
• Double-check stroke math (extended minus retracted)
• Re-measure pin diameters and clevis widths
• Review port size and location notes

Circle any measurement you are unsure about. Take two or three clear photos of the cylinder: one overall shot showing how it mounts, one of each mounting end, and one of the ports.

When customers send PLYET their notes plus photos, our team can often spot inconsistencies—like a bore size that does not match typical rod sizing for that range, or a port location that might interfere with brackets. From there, we can recommend a stocking cylinder from our inventory of aftermarket hydraulic cylinders, guide minor mounting adjustments if appropriate, or discuss a built-to-spec option when the application requires an exact match.

Careful measurements combined with PLYET’s hydraulic experience help minimize downtime, prevent costly returns, and keep machines earning instead of sitting idle. Companies like Yates Industries and other respected manufacturers in this space emphasize the same approach: good measurements up front make for smooth installations later.

Frequently Asked Questions About Measuring Hydraulic Cylinders

Can I measure a hydraulic cylinder while it is still installed on the machine?

Yes, you can often measure bore (estimated from barrel outside diameter minus tubing walls), rod diameter, and approximate retracted length while the cylinder remains installed, as long as the system is in a safe, depressurized state. Extended length and certain mounting details—especially clevis width and trunnion locations—may require either fully cycling the cylinder or temporarily removing one end from its marked location. If access is tight, take several photos and rough dimensions, then contact PLYET to decide whether full removal is necessary before ordering.

What if my measurements do not line up perfectly with standard inch sizes?

Real-world measurements with a tape measure might show numbers like 2.47 in or 11.9 in, which usually correspond to nominal standard sizes like 2.50 in bore or 12 in stroke. Record what you actually measure and discuss with PLYET. Our team can interpret whether it is a worn part, paint buildup, or simply the limitation of the measuring tool. Sending clear photos of the measuring tape or calipers in place helps confirm whether the dimension matches a standard fractional inch size.

Do I need to match the exact brand of the original hydraulic cylinder?

In many cases, you do not need the same brand name. What truly matters is matching the critical specifications—bore, rod, stroke, mounts, ports, and pressure rating—in American standard units. PLYET often supplies high-quality aftermarket hydraulic cylinders that bolt into place and perform equal to or better than the original equipment manufacturer version when sized correctly. Gather all your measurements and contact PLYET rather than feeling locked into a single OEM source, especially on out-of-production or long-lead-time cylinders.

How precise do my measurements need to be?

For bore and rod diameter, aim for at least 0.01-inch accuracy using calipers, since these affect force output and rod strength. For overall lengths and clevis widths, within 1/16 inch is usually acceptable, but closer is better on tightly packaged equipment. If you are unsure, take your best measurements and let PLYET guide you through what needs re-checking before a final order.

What information should I have ready when I call PLYET Industrial Supply?

Have these essentials prepared:

• Bore in inches
• Rod diameter in inches
• Stroke length in inches
• Retracted and extended lengths (pin-to-pin or your reference points) in inches
• Mount type and pin diameters at each end
• Port size and type, if known (ORB, NPT, JIC)
• Machine make, model, and approximate year
• How the cylinder is used (loader lift, tilt, grapple, clamp, steering, log splitter ram)

With those details plus a few photos, PLYET’s team can narrow down options quickly and help you choose a cylinder that fits, lasts, and works the first time.
