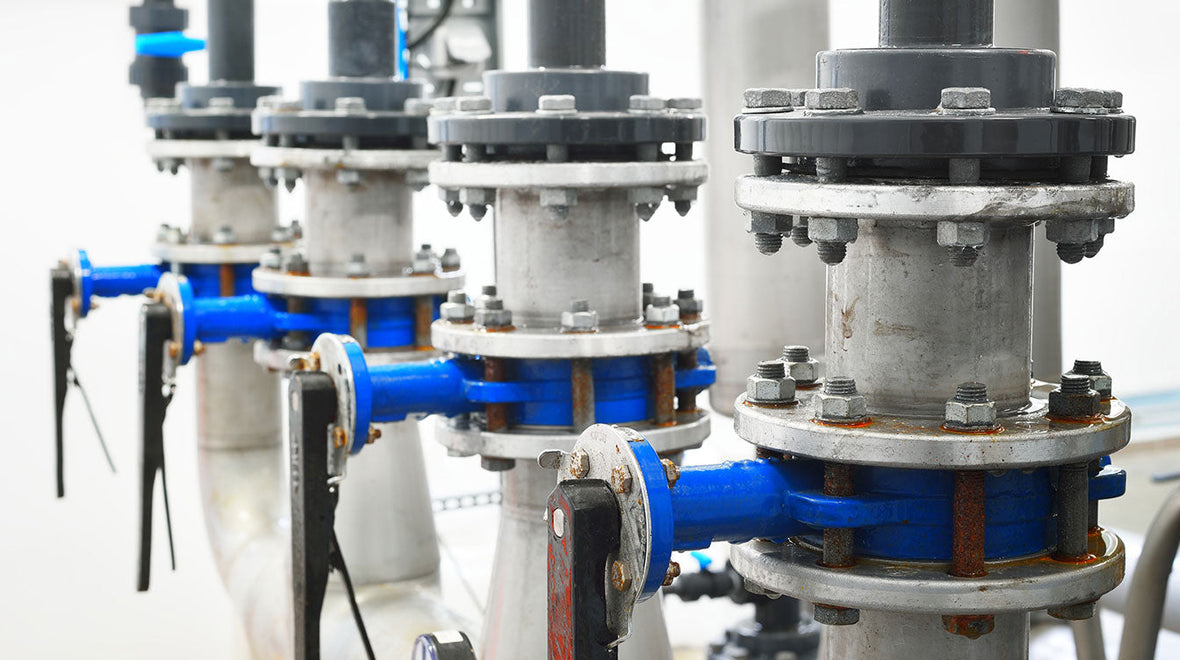

2026 Butterfly Valve Guide

2026 Butterfly Valve Guide

Key Takeaways

  • A butterfly valve uses a simple quarter-turn motion to start, stop, or regulate flow using a rotating disc inside the pipe.
  • At PLYET, we supply resilient seated, high-performance (double offset) and triple offset butterfly valves for everything from water systems to demanding industrial applications.
  • Choosing the right valve comes down to pressure, temperature, media, and how tight the shutoff needs to be—we help you get it right the first time.
  • Triple offset butterfly valves are built for the toughest conditions, handling extreme pressure, temperature, and critical shutoff requirements, and are widely used in many industries.
  • Butterfly valves are cost-effective thanks to their compact design, lighter weight, and ease of installation and maintenance.
  • Key advantages of butterfly valves include simple design, cost-effectiveness, quick operation, lightweight construction, tight sealing, and reliable performance across many industries.

What Is a Butterfly Valve?

A butterfly valve is one of the most efficient ways to control flow in a pipeline. Inside the valve, there’s a circular valve disc that rotates a quarter turn (90 degrees) to open or close the flow, regulating fluid flow through the system. When the valve disc is parallel with the flow, the valve is open. When it turns perpendicular, the flow stops.
What makes butterfly valves so versatile is that they’re not just “on or off.” You can also position the valve disc partially open to control fluid flow, which is useful in many process systems.

At PLYET, we focus on industrial-grade butterfly valves—equipment designed to perform reliably in real-world environments, not light-duty plumbing applications. Whether you’re dealing with liquids such as water, chemicals, steam, or air, our valves are built to handle it safely and consistently. Butterfly valves are commonly used for controlling the flow of liquids and gases.

Compared to other valve types like ball or gate valves, butterfly valves are:

  • Lighter and easier to handle
  • More compact (often taking up about half the space)
  • Easier to automate
  • More cost-effective to install and maintain

However, butterfly valves are less suitable for high-pressure systems compared to ball or gate valves.

That said, they’re not a one-size-fits-all solution. In higher-pressure systems, the type of butterfly valve you choose becomes critical—and that’s where our expertise comes in.

Because the valve disc stays in the flow path even when fully open, this creates a permanent obstruction and causes a continuous pressure drop, even when the valve is fully open.

Common Applications

Butterfly valves are suitable for many applications across different industries. You’ll typically see butterfly valves used for:

  • Pipeline shutoff
  • Flow regulation in process systems
  • Isolating pumps and equipment
  • Emergency shutoff systems

Butterfly Valve Parts and How They Work Together

Every butterfly valve shares a few key components. The valve bore, which is the internal diameter where the disc rotates, plays a crucial role in determining flow characteristics and sealing performance. Understanding these helps you make better decisions when selecting and maintaining your valve. Additionally, the compact and lightweight design of butterfly valves means they take up about 50% less space and require less structural support than alternative valve types.

Valve Body

This is the outer housing that connects to your piping system, typically by attaching to two flanges using pipe flanges for proper sealing and installation. At PLYET, we supply

  • Wafer style – compact, designed to be sandwiched between two pipe flanges, making it suitable for tight spaces
  • Lug style – available with double lug connections for secure fitting between pipe flanges, and allows for dead-end service
  • Double-flanged – provides maximum strength and stability

Common materials include ductile iron, carbon steel, and stainless steel, depending on your application.

Disc

The valve disc is the part that actually controls the flow. Its shape, coating, and material all impact performance, including flow efficiency, torque, and corrosion resistance. The valve disc can be positioned at various angles to regulate flow.

However, the presence of the valve disc in the flow path may lead to sealing issues and make butterfly valves generally unsuitable for pigging.

Seat

The seat creates the seal that prevents leaks. Depending on your application, this could be:

  • EPDM for water systems
  • Buna-N for oil resistance
  • Viton for higher temperatures and chemicals
  • Metal seats for extreme conditions

Stem (Shaft)

The stem connects the actuator to the disc. It’s designed for strength, corrosion resistance, and safety, often using materials like stainless steel.

Actuation

Butterfly valves are easy to operate and automate. They can be operated using various actuation methods, including handwheels, gears, or actuators, which allow for precise control of the valve disc position. Common actuation methods include:

  • Manual handles
  • Gear operators
  • Pneumatic actuators
  • Electric actuators
  • Hydraulic systems

Because butterfly valves require less torque than many other valve types, automation is typically more affordable and easier to implement.

Butterfly Valve Types We Supply at PLYET

Not all butterfly valves are built the same. The main differences come down to how the disc and seat are designed—specifically, how “offset” the disc is from the center. There are butterfly valve types with one, two, or even three offsets, each offering different sealing and performance characteristics.

Resilient Seated Butterfly Valves

A resilient seated butterfly valve is your go-to valve for general service. Also known as a concentric valve, it features a stem centered in the middle of the valve disc and a flexible rubber seat that creates a tight, effective seal. The simple design of resilient seated butterfly valves contributes to their cost-effectiveness, ease of installation, and suitability for a wide range of environments.

They’re ideal for:

  • Water systems
  • HVAC applications
  • Low-pressure industrial processes

At PLYET, we offer multiple seat materials to match your environment, and sizes typically range from 2” to 48”.

If your system is straightforward and doesn’t involve extreme conditions, this simple design is often the most practical and cost-effective choice.

High Performance (Double Offset) Butterfly Valves

When you step into higher pressures, temperatures, or more demanding media, double offset butterfly valves—also known as high-performance butterfly valves—make a big difference. These valves are specifically engineered to handle pressures and feature higher pressure ratings, making them ideal for demanding industrial applications.

The offset design reduces friction between the disc and seat, which means:

  • Less wear over time
  • Lower operating torque
  • Better sealing performance

These valves are commonly used in:

  • Steam systems
  • Hydrocarbon processing
  • Higher-pressure water systems
  • HVAC and industrial control applications

At PLYET, we offer options like PTFE seats and metal-backed designs for added durability and performance.

Triple Offset Butterfly Valves

This is where butterfly valves really prove their value in heavy industrial applications.

Triple offset butterfly valves (TOVs) are engineered for extreme services, such as high temperatures, pressures, and corrosive environments. Their unique geometry minimizes contact between the sealing surfaces, enhancing sealing efficiency, valve longevity, and ensuring reliable performance. The disc only contacts the seat at the final moment of closure, which reduces wear dramatically and allows for:

  • Complete shutoff (bubble-tight, zero-leakage sealing)
  • High-pressure capability (up to 2500 psi)
  • High-temperature performance
  • Long service life in severe environments

These valves are trusted for reliable performance in critical applications and are commonly used in:

  • Power generation
  • Refineries
  • Chemical processing plants
  • Critical isolation points

If your application is demanding and failure isn’t an option, this is the level you want to be at.

How a Butterfly Valve Works (Simple Explanation)

Think of it like flipping a light switch.

  • Turn the handle 90 degrees → the valve moves from fully closed to open position or vice versa, allowing you to rapidly shut or open flow.
  • Partially turn it → you are controlling how much flow passes through.

Butterfly valves can be opened or closed rapidly with a quarter turn, making them ideal for fast on/off operation and good throttling capabilities, especially in low-pressure systems.

Even when fully open, the disc stays in the flow path. That creates a small amount of resistance, which is normal. It’s also why proper sizing is important—especially for throttling applications.

At PLYET, we take that into account when helping you select a valve. We look at flow rates, pressure drop, and even potential issues like cavitation to make sure your system performs the way it should.

How to Choose the Right Butterfly Valve

This is where most mistakes happen—and where we add the most value.
We don’t just sell you a valve. We help you match the valve to your application, considering sizes ranging from small to very large, various pressure ratings, and even options that are specially designed for unique requirements.

Here’s what we typically need to know:

  • What type of fluid or gas are you working with?
  • What are the operating and maximum temperatures?
  • What pressures will the system see?
  • Do you need a tight shutoff or basic isolation?
  • Is the valve for on/off use or flow control?

Quick Guidelines

  • Resilient seated → Best for water, HVAC, and general service
  • Double offset → Better for higher pressure, temperature, or mild chemicals
  • Triple offset → Required for extreme conditions and critical applications

We also help you select the right body style, flange compatibility, and actuator setup so everything fits and works together correctly.

Where Butterfly Valves Are Used

Butterfly valves are used across many industries due to their versatility, durability, and specialized features tailored to each sector. They are widely utilized in HVAC systems for regulating water flow.

Water & Wastewater

  • Treatment plants (including water treatment and sewage treatment): Butterfly valves are commonly used in water treatment and sewage treatment applications due to their ability to provide reliable shutoff and flow control.
  • Pump stations
  • Tank and filter isolation

HVAC Systems

  • Chilled and hot water loops
  • Cooling towers
  • Air handling systems

Chemical & Industrial Processing

  • Flow control of chemicals and liquids
  • Butterfly valves are widely used for controlling the flow of various liquids, including hazardous chemicals and flammable liquids, in industrial applications.
  • They ensure precise dosing and flow regulation, making them essential in chemical processing, water treatment, and power generation sectors.
  • Isolation in process lines
  • Butterfly valves are also used to isolate sections of process lines, allowing for maintenance or system modifications without shutting down the entire operation.

Power & Energy

  • Steam systems
  • Cooling water
  • Boiler feed applications

Because they’re lightweight and compact, butterfly valves also reduce installation time and structural support requirements—which saves money on the job.

Installation and Maintenance Tips

A little attention during installation goes a long way. The lightweight nature and small footprint of butterfly valves reduce the need for extensive piping support, making installation easier and less costly by eliminating the need for special equipment and reducing labor costs.

Installation Best Practices

  • Make sure the pipeline is clean before installing
  • Align flanges properly
  • Use the correct gaskets
  • Tighten bolts evenly to avoid distortion

If you’re working with slurry, keeping the stem horizontal can help reduce buildup.

Ongoing Maintenance

Butterfly valves are relatively low-maintenance, but a few simple checks help extend their life:

  • Inspect for leaks periodically
  • Make sure the operation is smooth
  • Lubricate gear operators if needed
  • Check actuator performance and settings

Soft seats can often be replaced in the field, while metal-seated valves may require specialized service. If that comes up, we’ll help you coordinate it.

Frequently Asked Questions

Do I need a resilient seated or high-performance valve?

If you’re working with water or standard conditions, a resilient seated valve is usually enough. For higher pressure, temperature, or more aggressive media, we’ll guide you toward a double or triple offset design.

Can butterfly valves be used for flow control?

Yes—but not all are designed for it. Butterfly valves are effective for controlling flow when properly sized and actuated. Proper sizing and the right actuator setup are key. We’ll help you configure a solution that gives you accurate, stable control.

What do you need to size a valve correctly?

We’ll ask for:

  • Line size and pipe details
  • Valve bore (the internal diameter of the valve, which affects flow and compatibility with pigging operations)
  • Media type
  • Temperature range
  • Pressure range
  • Shutoff requirements
  • On/off vs control use

With that, we can recommend a complete solution that fits your system.

Are triple offset valves always metal-seated?

Most are, because they’re designed for extreme conditions. For example, a triple offset butterfly valve features a laminated multilayer seat and bidirectional sealing, making it ideal for high-performance, fire-safe, and high-pressure applications. The exact seat design depends on your application, and we’ll match it accordingly.

Do you offer automated valve packages?

Yes. At PLYET, we supply fully assembled and tested valve packages with actuators, positioners, and accessories—ready to install and get to work.

Final Thoughts

Butterfly valves are one of the most efficient and versatile flow control solutions available—but only when they’re selected correctly.

That’s where we come in.

At PLYET Industrial Supply, we combine real-world experience with a practical, no-nonsense approach to help you get the right valve for your system. Whether it’s a simple water application or a high-pressure industrial process, we’ll make sure your valve delivers reliable performance—safely and cost-effectively—for all butterfly valve applications.
