Hydraulic Cylinders: Types, Sizing, and Industrial Applications

Key Takeaways

• Hydraulic cylinders convert hydraulic pressure into linear force and motion, serving as the muscle of presses, loaders, excavators, and industrial machinery across countless applications.
• The main cylinder types PLYET Industrial Supply customers look for include welded cylinders, tie rod cylinders, telescopic units, and position-sensing “smart” cylinders for automated systems.
• Correct sizing—covering bore size, stroke length, rod diameter, pressure ratings, and mounting style—is critical to safety, uptime, and equipment compatibility.
• PLYET Industrial Supply helps engineers and maintenance teams select and source cylinders and components for real-world industrial and mobile applications, from one-off replacements to plant-wide standardization projects.

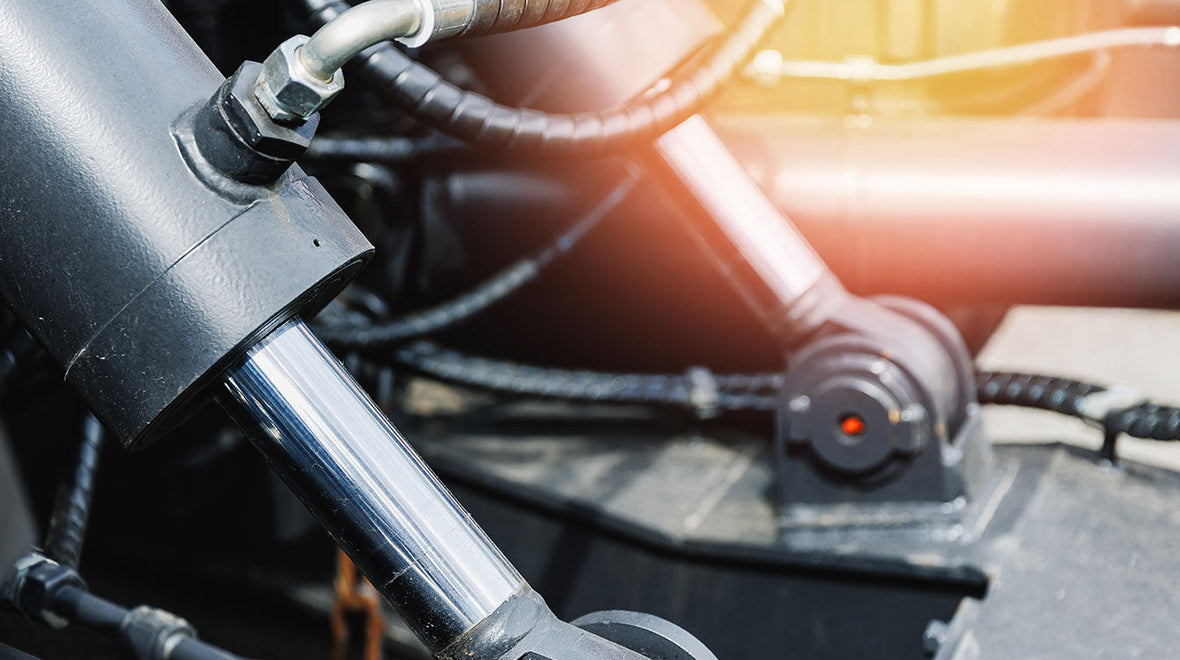

What Is a Hydraulic Cylinder?

A hydraulic cylinder is a mechanical actuator that converts hydraulic fluid pressure into straight-line motion and force. At PLYET Industrial Supply, we consider these components the workhorses of industrial and mobile equipment—they lift, push, pull, clamp, and press with remarkable power in a compact form.

The main components include:

• Barrel (tube): The precision-honed steel housing
• Piston: Divides the internal chambers and transfers force
• Piston rod: Extends from the cylinder to perform work
• End caps: Seal the barrel and provide mounting points
• Seals and ports: Prevent leakage and allow hydraulic fluid in/out

PLYET customers commonly use these cylinders in equipment like 20–40 ton H-frame shop presses, Bobcat compact excavators (E35 or S70 series), John Deere agricultural loaders on 5R tractors, and industrial balers running thousands of compaction cycles annually. Most systems operate at 2,000–3,500 psi, with some mobile welded designs exceeding 5,000 psi.

How Hydraulic Cylinders Work

The working principle is straightforward: a hydraulic pump sends pressurized oil through ports into one side of the piston. This pressure creates a force differential that moves the piston and rod in a linear direction. Meanwhile, oil on the opposite side flows back to the tank through the return line.

In a double-acting hydraulic cylinder with a single rod, extension and retraction behave differently. The cap-end (blind side) has the full piston area available, while the rod side has less effective area because the rod takes up space.

Example calculation: A 2.5-inch bore cylinder at 3,000 psi generates approximately 14,726 pounds of force on the cap-end, but only about 11,045 pounds on the rod end due to the reduced area.

Most industrial systems use ISO VG 32 or 46 anti-wear hydraulic oils. Fluid cleanliness matters significantly—contamination causes 70–80% of cylinder failures according to the Fluid Power Society. PLYET’s technical team regularly troubleshoots issues like cylinder drift, slow movement, or noisy operation by tracing problems back to pressure, flow, or internal leakage.

Key Components and Construction Details

Understanding components helps you speak the same language as manufacturers and PLYET engineers when specifying or replacing cylinders. Here’s what matters:

Cylinder barrel:

Typically seamless honed steel (1018 or 1026 grade) with an inside surface finish of 40–60 microinches Ra. Straightness under 0.001 inch per foot ensures smooth motion and extended seal life.

Piston:

Machined from steel or ductile iron with grooves for seals. Common seal types include u-cup seals (urethane, 90–95A durometer) and bronze-filled PTFE wear bands that keep friction low.

Piston rod:

Standard construction uses medium-carbon steel (1045/4140) with hard chrome plating 0.0005–0.001 inches thick. Rod diameter affects buckling resistance—typically 40–60% of bore diameter for adequate strength.

Head and cap:

These end covers handle mounting, rod guiding, and sealing. Attachment methods include threads, welding, or tie rods, depending on cylinder type.

Seals and wipers:

Rod seals prevent external leakage, piston seals divide chambers, and wipers exclude dirt. In harsh environments like construction sites and sawmills, PLYET emphasizes quality seal kits for rebuilds.

Ports and fittings:

Common port sizes range from 1/4” to 1” NPT or SAE O-ring boss threads. Matching port orientation and thread type with existing plumbing avoids installation headaches.

Single-Acting vs Double-Acting Cylinders

The terms “single-acting” and “double-acting” describe how many directions the cylinder produces powered motion. This distinction affects cost, control, and application suitability.

Feature	Single Acting Hydraulic Cylinder	Double Acting Hydraulic Cylinder
Powered direction	One (usually extension)	Both extension and retraction
Return method	Gravity, springs, or load	Hydraulic pressure
Complexity	Simpler, fewer seals	More complex, more control
Cost	20–30% lower	Higher, but more versatile
Common uses	Dump beds, vehicle lifts	Loaders, presses, steering

Use-case examples:

• A single-acting telescopic cylinder on a 14-foot dump trailer uses gravity for retraction
• A double-acting welded cylinder on a CNC press brake backgauge provides ±0.005-inch positioning accuracy

PLYET stocks both types and helps customers decide based on the required motion profile and available hydraulic circuits.

Major Cylinder Types: Welded, Tie-Rod, and Telescopic

Most PLYET Industrial Supply customers need one of three main design families. Each has distinct advantages depending on your application, mounting constraints, and maintenance preferences.

Welded Body Hydraulic Cylinders

Welded cylinders dominate modern mobile equipment manufactured after approximately 2015. The barrel is welded directly to end caps, with ports and mounting features also attached by welding.

Key advantages:

• Narrower profile and shorter overall length at a given stroke
• Excellent resistance to shock and vibration (up to 10g)
• Flexible customization for port locations and special mounts
• Well-suited for high-pressure applications (often 3,000+ psi)

Typical applications:

Boom and stick cylinders on excavators, steering cylinders on off-road equipment, loader lift and tilt functions, and stabilizers on aerial lifts.

While not as simple to disassemble as tie-rod units, welded cylinders are designed for rebuilding with proper tools. PLYET supplies seal kits and replacement components for common sizes.

Tie-Rod Hydraulic Cylinders

Tie rod cylinders represent the traditional industrial standard, featuring square or rectangular end caps clamped to the barrel by external tie rods. NFPA and ISO dimension standards make many tie-rod units interchangeable across brands—a significant benefit for MRO buyers.

Key advantages:

• Straightforward disassembly for field service
• Easy seal replacement with standard kits
• Visual indication of damage (bent rods, corrosion)
• Strong standards support for long-term parts availability

Typical applications:

Metal stamping presses, injection molding machinery, conveyor diverters, lifting tables, and automated process equipment in plants built between 1990 and 2026.

PLYET can cross-reference older OEM part numbers to current-standard cylinders when original suppliers no longer exist.

Telescopic Hydraulic Cylinders

Telescopic cylinders feature multiple nested stages that collapse short but extend to several times their closed length. This design excels when space is limited, but a long stroke is required.

Key characteristics:

• 2–5 nested sleeves providing 20:1 extended-to-closed ratios
• Single acting is most common (gravity retract); double acting is available for controlled lowering
• Higher cost and more complex sealing than single-stage units
• Specific mounting requirements (pin centers, load capacity)

Common applications:

10–20 cubic yard dump bodies, roll-off hoists, agricultural grain trailers, and refuse collection trucks from the 2010s and 2020s.

Before ordering through PLYET, confirm the required stroke, closed length, mounting pin sizes, and load characteristics.

Piston Rod Construction and Surface Protection

Rod design directly impacts cylinder life, seal wear, and corrosion resistance—major concerns for maintenance teams running 24/7 operations.

Standard rods use medium-carbon steel with hard chrome plating (ASTM B456 Type II Class 2), providing a mirror finish of 50–100 microinches. For harsh environments, PLYET can source advanced options:

• Chrome-over-nickel for marine applications
• Induction-hardened rods (Rc 50–55)
• Ceramic or HVOF thermal spray coatings for offshore or corrosive chemical plants

Rod diameter selection follows engineering calculations based on bore, stroke, and expected side loading. Undersized rods on long strokes cause approximately 40% of field failures.

Wipers and rod seals protect the rod surface against dirt and moisture. In agricultural applications and construction sites, double-lip wipers are essential for reliable performance.

Mounting Methods and Force Distribution

Correct mounting is as important as correct bore size. Misalignment and side loading quickly destroy seals, bushings, and rods.

Centerline fixed mounts (flange mounts, foot mounts): Best for straight-force applications like presses with less than 1° misalignment tolerance.

Pivoting mounts (clevis mounts, trunnion mounts): Allow angular movement of 5–15° swing. Widely used on loader arms, grapple cylinders, and material handling attachments.

Side and end mounts (side lugs, end clevis): Introduce bending moments if alignment is poor. Ensure adequate stroke and guide support when selecting these options.

Side loading beyond 5–10% of axial force can bend the rod, wear seals, and score the barrel. Design features like stop tubes or external guides mitigate these issues. PLYET often reviews customer drawings to recommend upgraded mounts when failures recur.

Selecting the Right Hydraulic Cylinder for Your Application

Correct cylinder selection reduces downtime, avoids unsafe conditions, and prevents repeated failures. When you select a hydraulic cylinder through PLYET, gather these key specifications first:

1. Calculate the required force based on the load
2. Derive the minimum bore size at your system pressure
3. Check rod size for buckling resistance
4. Confirm stroke length and closed dimensions
5. Review the mounting type and port size
6. Consider environment: temperature, dust, chemicals, washdown

Common mistakes PLYET helps avoid:

• Undersized rods on long strokes
• Ignoring side loads from misaligned mounts
• Choosing the wrong port thread standard for existing hoses
• Overlooking seal material compatibility with the environment

PLYET supports both one-off replacements and standardization projects for plants upgrading multiple machines.

Position-Sensing and “Smart” Hydraulic Cylinders

Industry 4.0 has driven demand for smart cylinders with precise position feedback. These units use magnetostrictive sensors (like Temposonics) with 0.001-inch resolution to detect piston location without weakening the rod.

A magnet embedded in the piston works with an external sensor rail, providing continuous position data to PLCs or machine controllers.

Benefits include:

• Accurate stroke control and improved repeatability
• Integration with safety systems and load monitoring
• Predictive maintenance through velocity monitoring
• Reduced risk of over-travel damage

Real-world applications include automated material handling lines, synchronized multi-cylinder lifting systems, and modern agricultural implements with GPS-guided depth control. Contact PLYET when upgrading older equipment so that cylinder, sensor, and electronics are specified together.

Hydraulic Cylinder Maintenance, Repair, and Replacement

Many PLYET customers run equipment year-round and cannot afford unplanned cylinder failures. Regular maintenance extends life significantly.

Basic inspection checklist:

• Check for external leaks (more than 5 drops/min indicates seal issues)
• Inspect the rod for pits deeper than 0.005 inch
• Monitor for drifting loads or jerky movement
• Examine pins and mounts for wear

Typical wear points: Rod seals, wipers, piston seals, and bearing surfaces. PLYET supplies seal kits matched to common cylinder families.

Repair vs. replacement decision: Rebuild when rods and tubes are in good condition; replace when heavily damaged or obsolete. Document bore, stroke, rod diameter, mounting, and port details before ordering replacements.

Consider establishing a preventive maintenance schedule and keeping standardized spare cylinders for critical machines.

Frequently Asked Questions About Hydraulic Cylinders

These FAQs address common questions PLYET Industrial Supply hears from customers that weren’t fully covered above.

How do I measure an old hydraulic cylinder so PLYET can help me replace it?

Measure bore (inside diameter of the tube), rod diameter, stroke length (full travel), and pin-to-pin length fully retracted. Note pin sizes and mount types carefully. Clear photos of mounts and ports from multiple angles, plus any legible tag or part number, speed up cross-referencing. PLYET’s team can often identify replacements even when OEM tags from the 1990s are partially damaged, as long as physical dimensions are accurate. Include system pressure and application details so the replacement matches your requirements.

Can I mix different brands of hydraulic cylinders on the same machine?

Mixing brands is commonly possible if bore, stroke, rod size, porting, and mounts match. However, paired cylinders (like dual lift cylinders on a loader arm) should be identical to avoid uneven lifting. Pressure ratings and rod material should equal or exceed the original. PLYET can verify compatibility when proposing cross-brand replacements. Document any brand changes for future maintenance reference.

How long do hydraulic cylinders typically last in industrial service?

Life varies from 3 to 10 years depending on the environment and maintenance. Clean indoor plants see longer service; abrasive outdoor conditions shorten life significantly. Factors that reduce longevity include contaminated oil, misalignment, chronic overload, and poor-quality replacement seals. Many PLYET customers rebuild cylinders multiple times—durable designs with available seal kits make this practical. Regular inspections and oil analysis help plan rebuilds before catastrophic failure.

Can PLYET help with custom or modified hydraulic cylinders?

PLYET Industrial Supply works with manufacturers that customize bore, stroke, ports, mounts, coatings, and position sensing. For custom work, share sketches or drawings, load data, duty cycle, and environmental requirements. Custom cylinders carry longer lead times than stock catalog items, so plan early for 2025–2026 projects. PLYET often suggests near-standard options that meet requirements with minimal modification to control cost and delivery.

What hydraulic fluid and filtration level should I use to protect my cylinders?

Use standard anti-wear hydraulic oils (ISO VG 32 or 46) unless the OEM specifies otherwise. Appropriate filtration in the 10–25 micron range with regular filter changes prevents premature seal and rod wear. Avoid mixing different fluid types without checking compatibility and flushing the system. PLYET can help select fluid and filtration components as part of a broader reliability plan—not just supply the cylinders alone.
